Wrench Rabbit Complete Engine Rebuild Kit for 2003 Honda CR125R - WR101-098
Wrench Rabbit Complete Engine Rebuild Kit
Part Number: WR101-098
Fits: 2003 Honda CR125R
- Wrench Rabbit complete engine rebuild kit
- Nearly ALL components required for a complete and professional rebuild
- Wrench Rabbit kit saves money compared to purchasing items individually!
- All Components are factory assembled and trued to O.E.M. specifications, and will meet or surpass the O.E.M. quality and durability

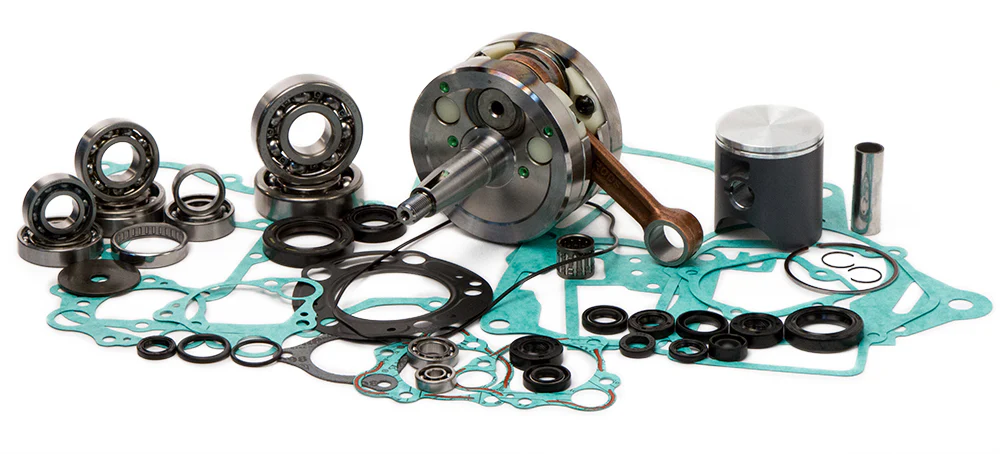

Kit Includes:
- Vertex piston kit (standard compression piston, rings, pin and clips)
- Complete set of nitride coated or chrome-plated piston rings
- Fully case-hardened wrist pin and Circlips
- Hot Rods heavy-duty crank (stock stroke - includes wrist pin bearing for two strokes)
- High pressure / temperature mechanical and rubber seals
- Vertex complete gasket kit, including seals and O-ring kit (covers top and bottom)
- Hot Cams Replacement cam chain
- Hot Rods main bearing / seal kit
- Hot Rods transmission bearing kit (includes transmission bearings, output shaft collar and sprocket lock washer)
- Includes trusted Hot Rods bearings for the primary and secondary shafts of the transmission
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | Wrench Rabbit Complete Engine Rebuild Kit |
| Part Number | WR101-098 |
| Fitment Type | |
| Unit Sale Qty | Kit |
| Style | |
| Material | |
| Color | |
| Size | |
| Finish | |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
(1) Crankshaft with connecting rod installed
(1) Needle bearing
(1) Piston
(1) Wrist pin
(2) Cir-clips
(1) Top ring
Oil seal kit includes:
(1) 26x37x7 Seal
(1) 12x25x7 Seal
(1) 12x22x5 Seal
(1) 16x25x5 Seal
(1) 14x22x5 Seal
(1) 9x18x7 Seal
(1) 10x17x4 Seal
(1) 12x18x3 Seal
Main bearing & seal kit includes:
(2) 22x56x16 Bearings
(1) 30x45x8 Seal
(1) 20x32x7 Seal
Transmission bearing kit includes:
(1) 20x47x14 Bearing
(1) 20x42x11 Bearing
(1) 25x42x9 Bearing
(2) 17x35x10 Bearings
(1) Needle bearing
(1) Cupped washer
(1) Bushing
Water pump kit includes:
(1) 12x24x6 Bearing
(1) 7x19x6 Bearing
(1) 12x25x4 Seal
(2) Water pump gaskets
(1) 12x22x5 Seal
Gasket Kit includes:
(1) Right crankcase cover gasket
(1) Left crankcase cover gasket
(1) Cylinder head gasket
(1) Cylinder base gasket
(2) Water pump gaskets
(1) Reed valve gasket
(1) Exhaust joint gasket
(1) Exhaust valve cover gasket
(1) Gasket
(1) 12x18x3 Seal
(3) O-Rings
2003 Honda CR125R
