Wrench Rabbit Complete Engine Rebuild Kit for 1992-94 Honda CR250R - WR101-012

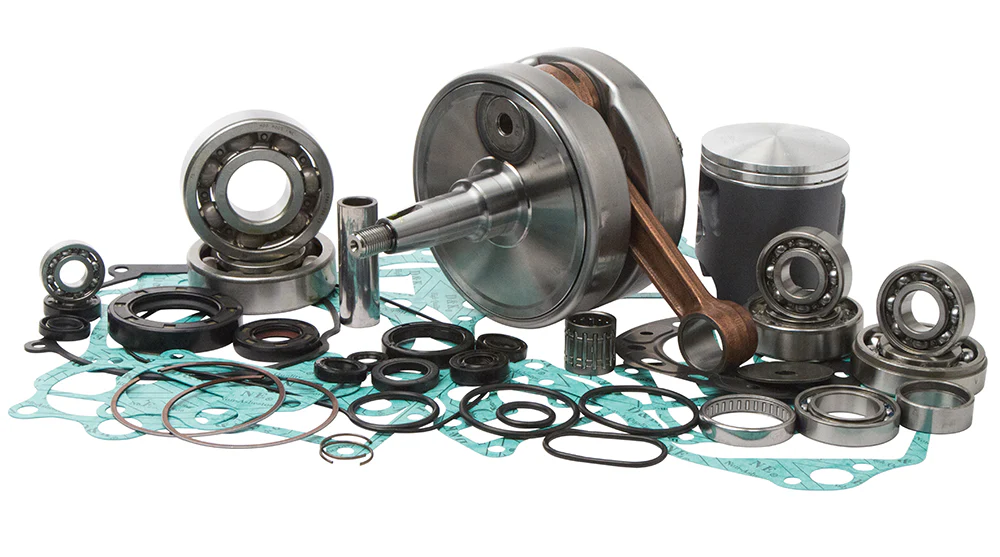

Product image 1

Wrench Rabbit Complete Engine Rebuild Kit for 1992-94 Honda CR250R - WR101-012

Wrench Rabbit Complete Engine Rebuild Kit

  • Wrench Rabbit complete engine rebuild kit.
  • Nearly ALL components required for a complete and professional rebuild.
  • Wrench Rabbit kit saves money compared to purchasing items individually!
  • All Components are factory assembled and trued to O.E.M. specifications, and will meet or surpass the O.E.M. quality and durability.

Kit Includes:

  • Vertex piston kit (standard compression piston, rings, pin and clips).
  • Complete set of nitride coated or chrome-plated piston rings.
  • Fully case-hardened wrist pin and Circlips
  • Hot Rods heavy-duty crank (stock stroke - includes wrist pin bearing for two strokes)
  • High pressure / temperature mechanical and rubber seals.
  • Vertex complete gasket kit, including seals and O-ring kit (covers top and bottom).
  • Hot Cams Replacement cam chain
  • Hot Rods main bearing / seal kit.
  • Hot Rods transmission bearing kit (includes transmission bearings, output shaft collar and sprocket lock washer).
  • Includes trusted Hot Rods bearings for the primary and secondary shafts of the transmission.
Product Line Wrench Rabbit Complete Engine Rebuild Kit
Part Number WR101-012
Fitment Type
Use Type
Unit Sale Qty Kit
Style Standard Bore Piston
Position
Material
Finish
Piston/Cylinder Size 66.40mm
Piston Size Added 0.00mm
Cylinder Stroke Volume
Final Engine Displacement 250cc
California Emissions FALSE
Product Disclaimer

(1) Crankshaft
(1) Piston Kit with Rings
(1) Wrist pin
(2) Circlips
(2) 28x68x18 Bearings
(1) 37x58x11 Seal
(1) 20x37x7 Seal
(2) Water pump gaskets
(1) 12x28x8 Bearing
(1) 12x25x7 Seal
(1) 12x22x5 Seal
(1) 24x56x14 Bearing
(1) 25x52x15 Bearing
(1) 25x42x9 Bearing
(2) 17x40x12 Bearings
(1) 33x38x8 Bearing
(1) Sleeve
(1) Washer
(1) 31x40x7 Seal
(1) 20x28x5 Seal
(1) 12x25x7 Seal
(1) 14x22x5 Seal
(1) 21x22x5 Seal
(1) 12x18x3 Seal
(1) Crankcase cover gasket(right)
(1) Crankcase cover gasket(left)
(7) O-rings(assorted sizes)
(1) Clutch cover o-ring
(2) Water pump gaskets
(1) Right cylinder side cover gasket
(1) Reed valve gasket
(1) Cylinder gasket
(1) Cylinder head gasket

1994 Honda CR250R
1993 Honda CR250R
1992 Honda CR250R

$195.30

Original: $558.00

-65%
Wrench Rabbit Complete Engine Rebuild Kit for 1992-94 Honda CR250R - WR101-012

$558.00

$195.30
