Vertex PRO-BB Piston Kit for 2006-13 KTM 250 XCF-W / 2007-12 KTM 250 XC-F - 79.96 mm Bore - 23274A
Vertex Vertex PRO-BB Piston Kit
- All piston skirts are coated with a hi-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
- Cast Replica piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
- Forged Replica pistons are forged from 2618 aluminum for superior strength and durability
- Forged High Compression pistons improve power and torque across entire rpm range
- Forged Big Bore pistons increase engine’s displacement, torque, and peak horsepower
- Forged Replica pistons are forged OE replacements
- All pistons are heat treated with a T-5 hardening and tempering cycle
- Replica pistons and all rings are OEM replacements

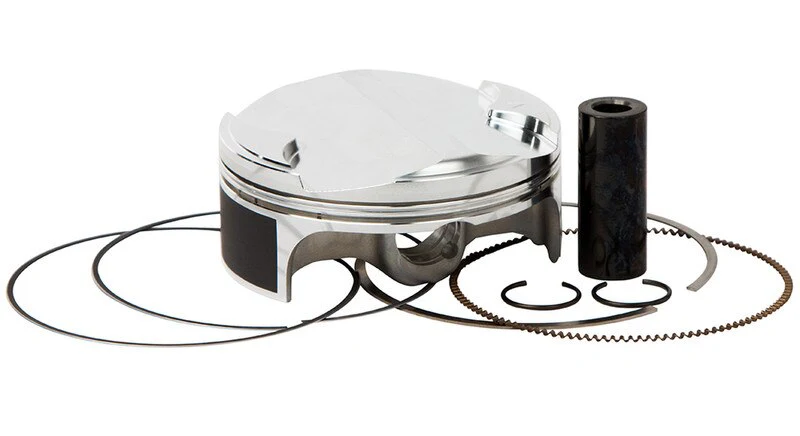

- Kits include piston, rings, wrist pin and circlips
- Two stroke replacement rings are sold individually (Example if your piston has two rings you will want to order two rings)
- Four-stroke piston rings sold as a set
| Product Line | Vertex PRO-BB Piston Kit |
| Part Number | 23274A |
| Fitment Type | Model-Size Specific Fitment |
| Use Type | |
| Unit Sale Qty | Each |
| Style | Big Bore Piston Kit |
| Position | |
| Material | |
| Finish | |
| Piston/Cylinder Size | 79.96mm |
| Piston Size Added | 4.00mm |
| Compression Ratio | 13.3:1 |
| Final Engine Displacement | 280cc |
| California Emissions | FALSE |
| Product Disclaimer | CAUTION: You MUST measure the size of your cylinder BEFORE ORDERING. Fitment depends on size AND compatible year-make-model. If you gamage/Return of a piston/rings due to ordering the wrong size will not be accepted. |
| Fitment Note | |
| Fitment Note | |
| Fitment Note | |
| Fitment Note | |
| Fitment Note |
2013 KTM 250 XCF-W
2012 KTM 250 SX-F
2012 KTM 250 XC-F
2012 KTM 250 XCF-W
2011 KTM 250 SX-F
2011 KTM 250 XC-F
2011 KTM 250 XCF-W
2010 KTM 250 SX-F
2010 KTM 250 XC-F
2010 KTM 250 XCF-W
2009 KTM 250 SX-F
2009 KTM 250 XC-F
2009 KTM 250 XCF-W
2008 KTM 250 SX-F
2008 KTM 250 SXS-F
2008 KTM 250 XC-F
2008 KTM 250 XC-F
2008 KTM 250 XCF-W
2008 KTM 250 XCF-W
2007 KTM 250 EXC-F
2007 KTM 250 SX-F
2007 KTM 250 SXS-F
2007 KTM 250 XC-F
2007 KTM 250 XC-F
2007 KTM 250 XCF-W
2007 KTM 250 XCF-W
2006 KTM 250 SX-F
2006 KTM 250 SXS-F
2006 KTM 250 XC-F
2006 KTM 250 XCF-W
2006 KTM 250 XCF-W
2005 KTM 250 SX-F
2005 KTM 250 XC-F
2005 KTM 250 XCF-W
