S&S Cycle EZ Start Chain Drive Cams

Part Number: 330-0299
Type: Chain

• Start any engine with a stock starter
• Reliable-tested for 10,000 starts and didn’t even run the battery down
• Save your starter and battery
• Automatic start with no buttons to push

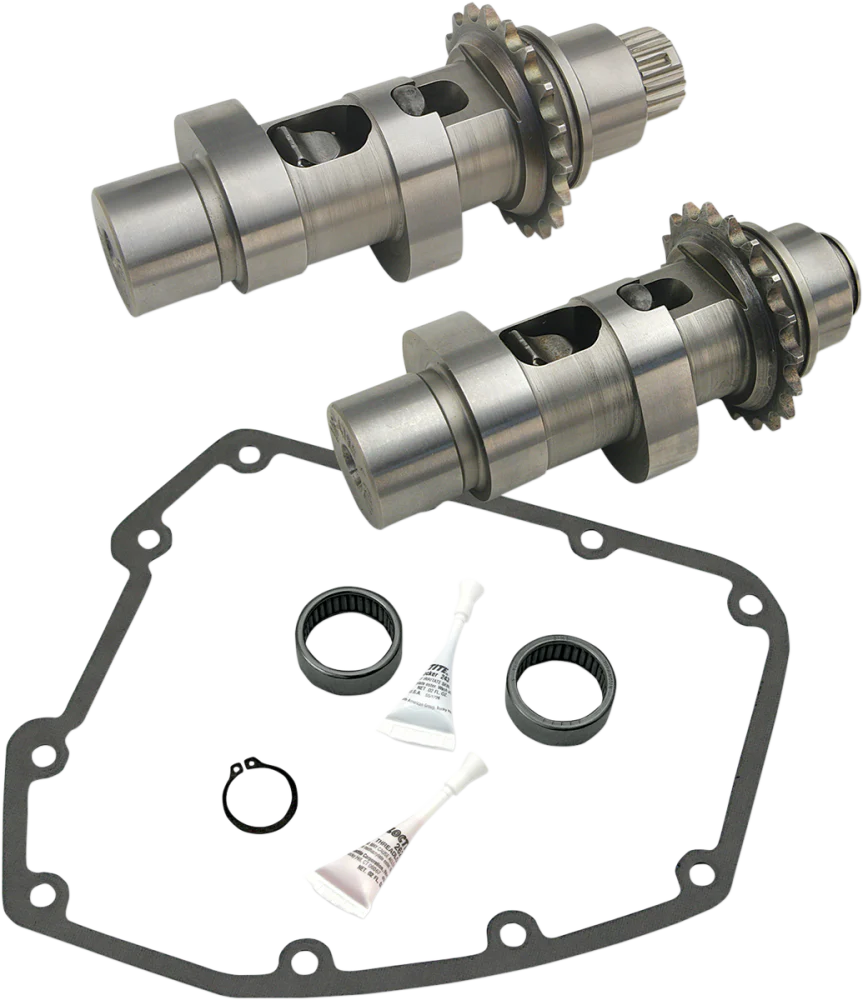

• Kits include cams, bearings and gaskets

Start any engine regardless of displacement or compression ratio with a stock starter. Save your starter and battery; tested for 10,000 starts without running battery down. Spring-loaded lobe in cam allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance.

Intake:

• Open: 13 degrees
• Close: 50 degrees
• Duration @ .053 inches: 226 degrees
• Valve Lift: .585  inches

Exhaust:

• Open: 33  degrees
• Close: 22  degrees
• Duration @ .053 inches: 252  degrees
• Valve Lift: .585 inches

NOTES:

• Not for models with OEM compression releases.
• Not legal for use in emissions controlled vehicles in the state of California
