S&S Cycle EZ Start Chain Drive Cams for Harley Dyna / Road - 570CE - 106-5234
S&S Cycle EZ Start Chain Drive Cams
Part Number: 106-5234
Type: Camshaft
- Start any engine with a stock starter
- Reliable-tested for 10,000 starts and didn’t even run the battery down
- Save your starter and battery
- Automatic start with no buttons to push
- Kits include cams, bearings and gaskets
Start any engine regardless of displacement or compression ratio with a stock starter. Save your starter and battery; tested for 10,000 starts without running battery down. Spring-loaded lobe in cam allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance.
Intake:
- Open: 20 degree
- Close: 40 degree
- Duration @ .053 inch: 240 degree
- Valve Lift: .570 inch
Exhaust:
- Open: 55 degree
- Close: 20 degree
- Duration @ .053 inch: 250 degree
- Valve Lift: .570 inch
NOTES:
- Not for models with OEM compression releases.
- Not legal for use in emissions controlled vehicles in the state of California
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | SS Cycle Easy Start Camshaft Kit |
| Part Number | 106-5234 |
| Fitment Type | 570CE |
| Unit Sale Qty | |
| Style | Chain Drive |
| Material | |
| Color | |
| Size | |
| Finish | |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |

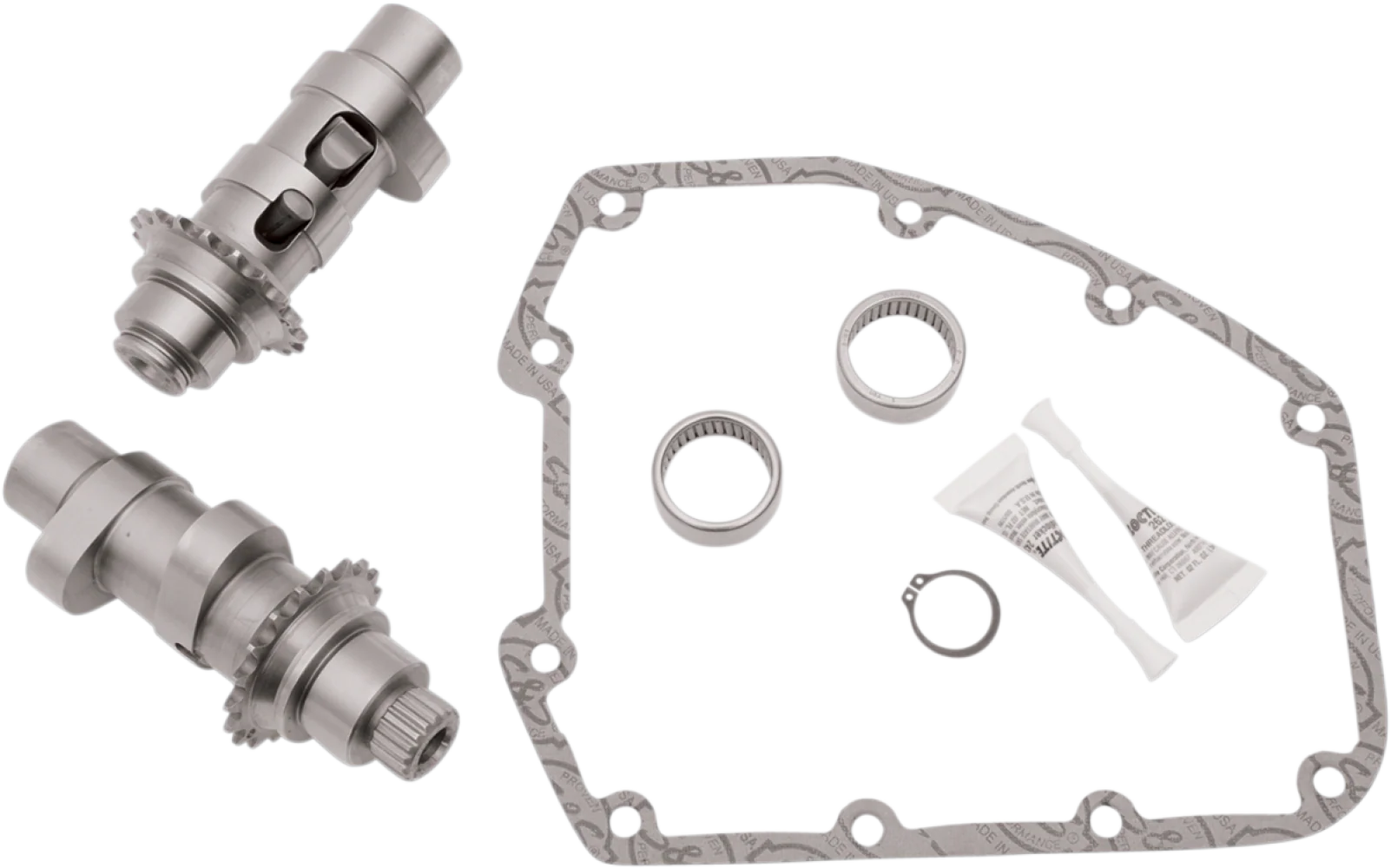

(1) Front cam
(1) Rear cam
(2) 26 X 31.75 X 12.5 Needle bearings
(1) Snap ring
(2) Small O-rings
(1) Large O-ring
(1) Cam cover gasket
(1) .02 Fl. Oz. Tube of LocTite® Thread locker
(1) .017 Fl. Oz. Tube of LocTite® Thread locker
Instructions
2017 Harley-Davidson Dyna Fat Bob - FXDF
2016 Harley-Davidson Dyna Fat Bob - FXDF
2015 Harley-Davidson Dyna Fat Bob - FXDF
2014 Harley-Davidson Dyna Fat Bob - FXDF
2013 Harley-Davidson Dyna Fat Bob - FXDF
2012 Harley-Davidson Dyna Fat Bob - FXDF
2011 Harley-Davidson Dyna Fat Bob - FXDF
2010 Harley-Davidson Dyna Fat Bob - FXDF
2009 Harley-Davidson Dyna Fat Bob - FXDF
2008 Harley-Davidson Dyna Fat Bob (EFI) - FXDF
2009 Harley-Davidson Dyna Fat Bob - FXDFSE
2010 Harley-Davidson Dyna Fat Bob - FXDFSE 2
2017 Harley-Davidson Dyna Low Rider - FXDL
2016 Harley-Davidson Dyna Low Rider - FXDL
2015 Harley-Davidson Dyna Low Rider - FXDL
2014 Harley-Davidson Dyna Low Rider - FXDL
2009 Harley-Davidson Dyna Low Rider - FXDL
2008 Harley-Davidson Dyna Low Rider (EFI) -FXDL
2007 Harley-Davidson Dyna Low Rider (EFI) -FXDL
2006 Harley-Davidson Dyna Low Rider Injected - FXDL I
2017 Harley-Davidson Dyna Street Bob - FXDB
2016 Harley-Davidson Dyna Street Bob - FXDB
2015 Harley-Davidson Dyna Street Bob - FXDB
2014 Harley-Davidson Dyna Street Bob - FXDB
2013 Harley-Davidson Dyna Street Bob - FXDB
2012 Harley-Davidson Dyna Street Bob - FXDB
2011 Harley-Davidson Dyna Street Bob - FXDB
2010 Harley-Davidson Dyna Street Bob - FXDB
2009 Harley-Davidson Dyna Street Bob - FXDB
2008 Harley-Davidson Dyna Street Bob (EFI) - FXDB
2007 Harley-Davidson Dyna Street Bob (EFI) - FXDB
2010 Harley-Davidson Dyna Super Glide - FXD
2009 Harley-Davidson Dyna Super Glide - FXD
2008 Harley-Davidson Dyna Super Glide (EFI) - FXD
2007 Harley-Davidson Dyna Super Glide (EFI) - FXD
2014 Harley-Davidson Dyna Super Glide Custom - FXDC
2013 Harley-Davidson Dyna Super Glide Custom - FXDC
2012 Harley-Davidson Dyna Super Glide Custom - FXDC
2011 Harley-Davidson Dyna Super Glide Custom - FXDC
2010 Harley-Davidson Dyna Super Glide Custom - FXDC
2009 Harley-Davidson Dyna Super Glide Custom - FXDC
2008 Harley-Davidson Dyna Super Glide Custom (EFI) - FXDC
2007 Harley-Davidson Dyna Super Glide Custom (EFI) - FXDC
2006 Harley-Davidson Dyna Super Glide Custom Injected - FXDC I
2007 Harley-Davidson Dyna Super Glide (EFI) - FXDSE
2008 Harley-Davidson Dyna Super Glide (EFI) - FXDSE 2
2006 Harley-Davidson Dyna Super Glide Injected - FXD I
2016 Harley-Davidson Dyna Switchback - FLD
2015 Harley-Davidson Dyna Switchback - FLD
2014 Harley-Davidson Dyna Switchback - FLD
2013 Harley-Davidson Dyna Switchback - FLD
2012 Harley-Davidson Dyna Switchback - FLD
2017 Harley-Davidson Dyna Wide Glide - FXDWG
2016 Harley-Davidson Dyna Wide Glide - FXDWG
2015 Harley-Davidson Dyna Wide Glide - FXDWG
2014 Harley-Davidson Dyna Wide Glide - FXDWG
2013 Harley-Davidson Dyna Wide Glide - FXDWG
2012 Harley-Davidson Dyna Wide Glide - FXDWG
2011 Harley-Davidson Dyna Wide Glide - FXDWG
2010 Harley-Davidson Dyna Wide Glide - FXDWG
2008 Harley-Davidson Dyna Wide Glide (EFI) - FXDWG
2007 Harley-Davidson Dyna Wide Glide (EFI) - FXDWG
2006 Harley-Davidson Dyna Wide Glide Injected - FXDWG I
2013 Harley-Davidson Electra Glide Classic - FLHTC
2012 Harley-Davidson Electra Glide Classic - FLHTC
2011 Harley-Davidson Electra Glide Classic - FLHTC
2010 Harley-Davidson Electra Glide Classic - FLHTC
2009 Harley-Davidson Electra Glide Classic - FLHTC
2008 Harley-Davidson Electra Glide Classic (EFI) - FLHTC
2007 Harley-Davidson Electra Glide Classic (EFI) - FLHTC
2016 Harley-Davidson Electra Glide Police - FLHTP
2015 Harley-Davidson Electra Glide Police - FLHTP
2014 Harley-Davidson Electra Glide Police - FLHTP
2009 Harley-Davidson Electra Glide Standard - FLHT
2008 Harley-Davidson Electra Glide Standard (EFI) - FLHT
2007 Harley-Davidson Electra Glide Standard (EFI) - FLHT
2016 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2015 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2014 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2013 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2012 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2011 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2010 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2009 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2008 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCU
2007 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCU
2010 Harley-Davidson Electra Glide Ultra Classic - FLHTCUSE 5
2007 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCUSE 2
2008 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCUSE 3
2016 Harley-Davidson Electra Glide Ultra Classic Low - FLHTCUL
2015 Harley-Davidson Electra Glide Ultra Classic Low - FLHTCUL
2016 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2015 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2014 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2013 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2012 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2011 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2010 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2016 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2015 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2014 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2016 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2015 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2016 Harley-Davidson Freewheeler - FLRT
2015 Harley-Davidson Freewheeler - FLRT
2017 Harley-Davidson Heritage Softail Classic - FLSTC
2016 Harley-Davidson Heritage Softail Classic - FLSTC
2015 Harley-Davidson Heritage Softail Classic - FLSTC
2014 Harley-Davidson Heritage Softail Classic - FLSTC
2013 Harley-Davidson Heritage Softail Classic - FLSTC
2012 Harley-Davidson Heritage Softail Classic - FLSTC
2011 Harley-Davidson Heritage Softail Classic - FLSTC
2010 Harley-Davidson Heritage Softail Classic - FLSTC
2009 Harley-Davidson Heritage Softail Classic - FLSTC
2008 Harley-Davidson Heritage Softail Classic (EFI) - FLSTC
2007 Harley-Davidson Heritage Softail Classic (EFI) - FLSTC
2017 Harley-Davidson Low Rider S - FXDLS
2016 Harley-Davidson Low Rider S - FXDLS
2009 Harley-Davidson Road Glide - FLTR
2016 Harley-Davidson Road Glide - FLTRX
2015 Harley-Davidson Road Glide - FLTRX
2008 Harley-Davidson Road Glide (EFI) - FLTR
2007 Harley-Davidson Road Glide (EFI) - FLTR
2013 Harley-Davidson Road Glide Custom - FLTRX
2012 Harley-Davidson Road Glide Custom - FLTRX
2011 Harley-Davidson Road Glide Custom - FLTRX
2010 Harley-Davidson Road Glide Custom - FLTRX
2012 Harley-Davidson Road Glide Custom - FLTRXSE
2013 Harley-Davidson Road Glide Custom - FLTRXSE 2
2009 Harley-Davidson Road Glide - FLTRSE 3
2016 Harley-Davidson Road Glide Special - FLTRXS
2015 Harley-Davidson Road Glide Special - FLTRXS
2016 Harley-Davidson Road Glide Ultra - FLTRU
2013 Harley-Davidson Road Glide Ultra - FLTRU
2012 Harley-Davidson Road Glide Ultra - FLTRU
2011 Harley-Davidson Road Glide Ultra - FLTRU
2016 Harley-Davidson Road Glide Ultra - FLTRUSE
2015 Harley-Davidson Road Glide Ultra - FLTRUSE
2011 Harley-Davidson Road Glide Ultra - FLTRUSE
2016 Harley-Davidson Road King - FLHR
2015 Harley-Davidson Road King - FLHR
2014 Harley-Davidson Road King - FLHR
2013 Harley-Davidson Road King - FLHR
2012 Harley-Davidson Road King - FLHR
2011 Harley-Davidson Road King - FLHR
2010 Harley-Davidson Road King - FLHR
2009 Harley-Davidson Road King - FLHR
2008 Harley-Davidson Road King (EFI) - FLHR
2007 Harley-Davidson Road King (EFI) - FLHR
2013 Harley-Davidson Road King Classic - FLHRC
2012 Harley-Davidson Road King Classic - FLHRC
2011 Harley-Davidson Road King Classic - FLHRC
2010 Harley-Davidson Road King Classic - FLHRC
2009 Harley-Davidson Road King Classic - FLHRC
2008 Harley-Davidson Road King Classic (EFI) - FLHRC
2007 Harley-Davidson Road King Classic (EFI) - FLHRC
2007 Harley-Davidson Road King Custom (EFI) - FLHRS
2014 Harley-Davidson Road King - FLHRSE
2013 Harley-Davidson Road King - FLHRSE 5
2007 Harley-Davidson Road King (EFI) - FLHRSE 3
2008 Harley-Davidson Road King (EFI) - FLHRSE 4
2013 Harley-Davidson Softail Blackline - FXS
2012 Harley-Davidson Softail Blackline - FXS
2011 Harley-Davidson Softail Blackline - FXS
2017 Harley-Davidson Softail Breakout - FXSB
2016 Harley-Davidson Softail Breakout - FXSB
2015 Harley-Davidson Softail Breakout - FXSB
2014 Harley-Davidson Softail Breakout - FXSB
2013 Harley-Davidson Softail Breakout - FXSB
2010 Harley-Davidson Softail Convertible - FLSTSE
2011 Harley-Davidson Softail Cross Bones - FLSTSB
2010 Harley-Davidson Softail Cross Bones - FLSTSB
2009 Harley-Davidson Softail Cross Bones - FLSTSB
2008 Harley-Davidson Softail Cross Bones (EFI) - FLSTSB
2010 Harley-Davidson Softail Custom - FXSTC
2009 Harley-Davidson Softail Custom - FXSTC
2008 Harley-Davidson Softail Custom (EFI) - FXSTC
2007 Harley-Davidson Softail Custom (EFI) - FXSTC
2017 Harley-Davidson Softail Deluxe - FLSTN
2016 Harley-Davidson Softail Deluxe - FLSTN
2015 Harley-Davidson Softail Deluxe - FLSTN
2014 Harley-Davidson Softail Deluxe - FLSTN
2013 Harley-Davidson Softail Deluxe - FLSTN
2012 Harley-Davidson Softail Deluxe - FLSTN
2011 Harley-Davidson Softail Deluxe - FLSTN
2010 Harley-Davidson Softail Deluxe - FLSTN
2009 Harley-Davidson Softail Deluxe - FLSTN
2008 Harley-Davidson Softail Deluxe (EFI) - FLSTN
2007 Harley-Davidson Softail Deluxe (EFI) - FLSTN
2007 Harley-Davidson Softail Deuce (EFI) - FXSTD
2017 Harley-Davidson Softail Fat Boy - FLSTF
2016 Harley-Davidson Softail Fat Boy - FLSTF
2015 Harley-Davidson Softail Fat Boy - FLSTF
2014 Harley-Davidson Softail Fat Boy - FLSTF
2013 Harley-Davidson Softail Fat Boy - FLSTF
2012 Harley-Davidson Softail Fat Boy - FLSTF
2011 Harley-Davidson Softail Fat Boy - FLSTF
2010 Harley-Davidson Softail Fat Boy - FLSTF
2009 Harley-Davidson Softail Fat Boy - FLSTF
2008 Harley-Davidson Softail Fat Boy (EFI) - FLSTF
2007 Harley-Davidson Softail Fat Boy (EFI) - FLSTF
2016 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2015 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2014 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2013 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2012 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2011 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2010 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2017 Harley-Davidson Softail Fat Boy S - FLSTFBS
2016 Harley-Davidson Softail Fat Boy S - FLSTFBS
2009 Harley-Davidson Softail Night Train - FXSTB
2008 Harley-Davidson Softail Night Train (EFI) - FXSTB
2007 Harley-Davidson Softail Night Train (EFI) - FXSTB
2009 Harley-Davidson Softail Rocker - FXCW
2008 Harley-Davidson Softail Rocker (EFI) - FXCW
2011 Harley-Davidson Softail Rocker C - FXCWC
2010 Harley-Davidson Softail Rocker C - FXCWC
2009 Harley-Davidson Softail Rocker C - FXCWC
2008 Harley-Davidson Softail Rocker C (EFI) - FXCWC
2017 Harley-Davidson Softail Slim - FLS
2016 Harley-Davidson Softail Slim - FLS
2015 Harley-Davidson Softail Slim - FLS
2014 Harley-Davidson Softail Slim - FLS
2013 Harley-Davidson Softail Slim - FLS
2012 Harley-Davidson Softail Slim - FLS
2017 Harley-Davidson Softail Slim S - FLSS
2016 Harley-Davidson Softail Slim S - FLSS
2007 Harley-Davidson Softail Springer Classic (EFI) - FLSTSC
2007 Harley-Davidson Softail Standard (EFI) - FXST
2006 Harley-Davidson Street Bob Injected - FXDB I
2016 Harley-Davidson Street Glide - FLHX
2015 Harley-Davidson Street Glide - FLHX
2014 Harley-Davidson Street Glide - FLHX
2013 Harley-Davidson Street Glide - FLHX
2012 Harley-Davidson Street Glide - FLHX
2011 Harley-Davidson Street Glide - FLHX
2010 Harley-Davidson Street Glide - FLHX
2009 Harley-Davidson Street Glide - FLHX
2008 Harley-Davidson Street Glide (EFI) - FLHX
2007 Harley-Davidson Street Glide (EFI) - FLHX
2016 Harley-Davidson Street Glide - FLHXSE
2015 Harley-Davidson Street Glide - FLHXSE
2010 Harley-Davidson Street Glide - FLHXSE
2011 Harley-Davidson Street Glide - FLHXSE 2
2012 Harley-Davidson Street Glide - FLHXSE 3
2016 Harley-Davidson Street Glide Special - FLHXS
2015 Harley-Davidson Street Glide Special - FLHXS
2014 Harley-Davidson Street Glide Special - FLHXS
2011 Harley-Davidson Street Glide Trike - FLHXXX
2010 Harley-Davidson Street Glide Trike - FLHXXX
2016 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2015 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2014 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2013 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2012 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2011 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2010 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2009 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
Original: $312.00
-65%$312.00
$109.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
S&S Cycle EZ Start Chain Drive Cams
Part Number: 106-5234
Type: Camshaft
- Start any engine with a stock starter
- Reliable-tested for 10,000 starts and didn’t even run the battery down
- Save your starter and battery
- Automatic start with no buttons to push
- Kits include cams, bearings and gaskets
Start any engine regardless of displacement or compression ratio with a stock starter. Save your starter and battery; tested for 10,000 starts without running battery down. Spring-loaded lobe in cam allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance.
Intake:
- Open: 20 degree
- Close: 40 degree
- Duration @ .053 inch: 240 degree
- Valve Lift: .570 inch
Exhaust:
- Open: 55 degree
- Close: 20 degree
- Duration @ .053 inch: 250 degree
- Valve Lift: .570 inch
NOTES:
- Not for models with OEM compression releases.
- Not legal for use in emissions controlled vehicles in the state of California
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | SS Cycle Easy Start Camshaft Kit |
| Part Number | 106-5234 |
| Fitment Type | 570CE |
| Unit Sale Qty | |
| Style | Chain Drive |
| Material | |
| Color | |
| Size | |
| Finish | |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
(1) Front cam
(1) Rear cam
(2) 26 X 31.75 X 12.5 Needle bearings
(1) Snap ring
(2) Small O-rings
(1) Large O-ring
(1) Cam cover gasket
(1) .02 Fl. Oz. Tube of LocTite® Thread locker
(1) .017 Fl. Oz. Tube of LocTite® Thread locker
Instructions
2017 Harley-Davidson Dyna Fat Bob - FXDF
2016 Harley-Davidson Dyna Fat Bob - FXDF
2015 Harley-Davidson Dyna Fat Bob - FXDF
2014 Harley-Davidson Dyna Fat Bob - FXDF
2013 Harley-Davidson Dyna Fat Bob - FXDF
2012 Harley-Davidson Dyna Fat Bob - FXDF
2011 Harley-Davidson Dyna Fat Bob - FXDF
2010 Harley-Davidson Dyna Fat Bob - FXDF
2009 Harley-Davidson Dyna Fat Bob - FXDF
2008 Harley-Davidson Dyna Fat Bob (EFI) - FXDF
2009 Harley-Davidson Dyna Fat Bob - FXDFSE
2010 Harley-Davidson Dyna Fat Bob - FXDFSE 2
2017 Harley-Davidson Dyna Low Rider - FXDL
2016 Harley-Davidson Dyna Low Rider - FXDL
2015 Harley-Davidson Dyna Low Rider - FXDL
2014 Harley-Davidson Dyna Low Rider - FXDL
2009 Harley-Davidson Dyna Low Rider - FXDL
2008 Harley-Davidson Dyna Low Rider (EFI) -FXDL
2007 Harley-Davidson Dyna Low Rider (EFI) -FXDL
2006 Harley-Davidson Dyna Low Rider Injected - FXDL I
2017 Harley-Davidson Dyna Street Bob - FXDB
2016 Harley-Davidson Dyna Street Bob - FXDB
2015 Harley-Davidson Dyna Street Bob - FXDB
2014 Harley-Davidson Dyna Street Bob - FXDB
2013 Harley-Davidson Dyna Street Bob - FXDB
2012 Harley-Davidson Dyna Street Bob - FXDB
2011 Harley-Davidson Dyna Street Bob - FXDB
2010 Harley-Davidson Dyna Street Bob - FXDB
2009 Harley-Davidson Dyna Street Bob - FXDB
2008 Harley-Davidson Dyna Street Bob (EFI) - FXDB
2007 Harley-Davidson Dyna Street Bob (EFI) - FXDB
2010 Harley-Davidson Dyna Super Glide - FXD
2009 Harley-Davidson Dyna Super Glide - FXD
2008 Harley-Davidson Dyna Super Glide (EFI) - FXD
2007 Harley-Davidson Dyna Super Glide (EFI) - FXD
2014 Harley-Davidson Dyna Super Glide Custom - FXDC
2013 Harley-Davidson Dyna Super Glide Custom - FXDC
2012 Harley-Davidson Dyna Super Glide Custom - FXDC
2011 Harley-Davidson Dyna Super Glide Custom - FXDC
2010 Harley-Davidson Dyna Super Glide Custom - FXDC
2009 Harley-Davidson Dyna Super Glide Custom - FXDC
2008 Harley-Davidson Dyna Super Glide Custom (EFI) - FXDC
2007 Harley-Davidson Dyna Super Glide Custom (EFI) - FXDC
2006 Harley-Davidson Dyna Super Glide Custom Injected - FXDC I
2007 Harley-Davidson Dyna Super Glide (EFI) - FXDSE
2008 Harley-Davidson Dyna Super Glide (EFI) - FXDSE 2
2006 Harley-Davidson Dyna Super Glide Injected - FXD I
2016 Harley-Davidson Dyna Switchback - FLD
2015 Harley-Davidson Dyna Switchback - FLD
2014 Harley-Davidson Dyna Switchback - FLD
2013 Harley-Davidson Dyna Switchback - FLD
2012 Harley-Davidson Dyna Switchback - FLD
2017 Harley-Davidson Dyna Wide Glide - FXDWG
2016 Harley-Davidson Dyna Wide Glide - FXDWG
2015 Harley-Davidson Dyna Wide Glide - FXDWG
2014 Harley-Davidson Dyna Wide Glide - FXDWG
2013 Harley-Davidson Dyna Wide Glide - FXDWG
2012 Harley-Davidson Dyna Wide Glide - FXDWG
2011 Harley-Davidson Dyna Wide Glide - FXDWG
2010 Harley-Davidson Dyna Wide Glide - FXDWG
2008 Harley-Davidson Dyna Wide Glide (EFI) - FXDWG
2007 Harley-Davidson Dyna Wide Glide (EFI) - FXDWG
2006 Harley-Davidson Dyna Wide Glide Injected - FXDWG I
2013 Harley-Davidson Electra Glide Classic - FLHTC
2012 Harley-Davidson Electra Glide Classic - FLHTC
2011 Harley-Davidson Electra Glide Classic - FLHTC
2010 Harley-Davidson Electra Glide Classic - FLHTC
2009 Harley-Davidson Electra Glide Classic - FLHTC
2008 Harley-Davidson Electra Glide Classic (EFI) - FLHTC
2007 Harley-Davidson Electra Glide Classic (EFI) - FLHTC
2016 Harley-Davidson Electra Glide Police - FLHTP
2015 Harley-Davidson Electra Glide Police - FLHTP
2014 Harley-Davidson Electra Glide Police - FLHTP
2009 Harley-Davidson Electra Glide Standard - FLHT
2008 Harley-Davidson Electra Glide Standard (EFI) - FLHT
2007 Harley-Davidson Electra Glide Standard (EFI) - FLHT
2016 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2015 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2014 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2013 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2012 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2011 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2010 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2009 Harley-Davidson Electra Glide Ultra Classic - FLHTCU
2008 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCU
2007 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCU
2010 Harley-Davidson Electra Glide Ultra Classic - FLHTCUSE 5
2007 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCUSE 2
2008 Harley-Davidson Electra Glide Ultra Classic (EFI) - FLHTCUSE 3
2016 Harley-Davidson Electra Glide Ultra Classic Low - FLHTCUL
2015 Harley-Davidson Electra Glide Ultra Classic Low - FLHTCUL
2016 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2015 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2014 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2013 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2012 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2011 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2010 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2016 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2015 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2014 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2016 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2015 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2016 Harley-Davidson Freewheeler - FLRT
2015 Harley-Davidson Freewheeler - FLRT
2017 Harley-Davidson Heritage Softail Classic - FLSTC
2016 Harley-Davidson Heritage Softail Classic - FLSTC
2015 Harley-Davidson Heritage Softail Classic - FLSTC
2014 Harley-Davidson Heritage Softail Classic - FLSTC
2013 Harley-Davidson Heritage Softail Classic - FLSTC
2012 Harley-Davidson Heritage Softail Classic - FLSTC
2011 Harley-Davidson Heritage Softail Classic - FLSTC
2010 Harley-Davidson Heritage Softail Classic - FLSTC
2009 Harley-Davidson Heritage Softail Classic - FLSTC
2008 Harley-Davidson Heritage Softail Classic (EFI) - FLSTC
2007 Harley-Davidson Heritage Softail Classic (EFI) - FLSTC
2017 Harley-Davidson Low Rider S - FXDLS
2016 Harley-Davidson Low Rider S - FXDLS
2009 Harley-Davidson Road Glide - FLTR
2016 Harley-Davidson Road Glide - FLTRX
2015 Harley-Davidson Road Glide - FLTRX
2008 Harley-Davidson Road Glide (EFI) - FLTR
2007 Harley-Davidson Road Glide (EFI) - FLTR
2013 Harley-Davidson Road Glide Custom - FLTRX
2012 Harley-Davidson Road Glide Custom - FLTRX
2011 Harley-Davidson Road Glide Custom - FLTRX
2010 Harley-Davidson Road Glide Custom - FLTRX
2012 Harley-Davidson Road Glide Custom - FLTRXSE
2013 Harley-Davidson Road Glide Custom - FLTRXSE 2
2009 Harley-Davidson Road Glide - FLTRSE 3
2016 Harley-Davidson Road Glide Special - FLTRXS
2015 Harley-Davidson Road Glide Special - FLTRXS
2016 Harley-Davidson Road Glide Ultra - FLTRU
2013 Harley-Davidson Road Glide Ultra - FLTRU
2012 Harley-Davidson Road Glide Ultra - FLTRU
2011 Harley-Davidson Road Glide Ultra - FLTRU
2016 Harley-Davidson Road Glide Ultra - FLTRUSE
2015 Harley-Davidson Road Glide Ultra - FLTRUSE
2011 Harley-Davidson Road Glide Ultra - FLTRUSE
2016 Harley-Davidson Road King - FLHR
2015 Harley-Davidson Road King - FLHR
2014 Harley-Davidson Road King - FLHR
2013 Harley-Davidson Road King - FLHR
2012 Harley-Davidson Road King - FLHR
2011 Harley-Davidson Road King - FLHR
2010 Harley-Davidson Road King - FLHR
2009 Harley-Davidson Road King - FLHR
2008 Harley-Davidson Road King (EFI) - FLHR
2007 Harley-Davidson Road King (EFI) - FLHR
2013 Harley-Davidson Road King Classic - FLHRC
2012 Harley-Davidson Road King Classic - FLHRC
2011 Harley-Davidson Road King Classic - FLHRC
2010 Harley-Davidson Road King Classic - FLHRC
2009 Harley-Davidson Road King Classic - FLHRC
2008 Harley-Davidson Road King Classic (EFI) - FLHRC
2007 Harley-Davidson Road King Classic (EFI) - FLHRC
2007 Harley-Davidson Road King Custom (EFI) - FLHRS
2014 Harley-Davidson Road King - FLHRSE
2013 Harley-Davidson Road King - FLHRSE 5
2007 Harley-Davidson Road King (EFI) - FLHRSE 3
2008 Harley-Davidson Road King (EFI) - FLHRSE 4
2013 Harley-Davidson Softail Blackline - FXS
2012 Harley-Davidson Softail Blackline - FXS
2011 Harley-Davidson Softail Blackline - FXS
2017 Harley-Davidson Softail Breakout - FXSB
2016 Harley-Davidson Softail Breakout - FXSB
2015 Harley-Davidson Softail Breakout - FXSB
2014 Harley-Davidson Softail Breakout - FXSB
2013 Harley-Davidson Softail Breakout - FXSB
2010 Harley-Davidson Softail Convertible - FLSTSE
2011 Harley-Davidson Softail Cross Bones - FLSTSB
2010 Harley-Davidson Softail Cross Bones - FLSTSB
2009 Harley-Davidson Softail Cross Bones - FLSTSB
2008 Harley-Davidson Softail Cross Bones (EFI) - FLSTSB
2010 Harley-Davidson Softail Custom - FXSTC
2009 Harley-Davidson Softail Custom - FXSTC
2008 Harley-Davidson Softail Custom (EFI) - FXSTC
2007 Harley-Davidson Softail Custom (EFI) - FXSTC
2017 Harley-Davidson Softail Deluxe - FLSTN
2016 Harley-Davidson Softail Deluxe - FLSTN
2015 Harley-Davidson Softail Deluxe - FLSTN
2014 Harley-Davidson Softail Deluxe - FLSTN
2013 Harley-Davidson Softail Deluxe - FLSTN
2012 Harley-Davidson Softail Deluxe - FLSTN
2011 Harley-Davidson Softail Deluxe - FLSTN
2010 Harley-Davidson Softail Deluxe - FLSTN
2009 Harley-Davidson Softail Deluxe - FLSTN
2008 Harley-Davidson Softail Deluxe (EFI) - FLSTN
2007 Harley-Davidson Softail Deluxe (EFI) - FLSTN
2007 Harley-Davidson Softail Deuce (EFI) - FXSTD
2017 Harley-Davidson Softail Fat Boy - FLSTF
2016 Harley-Davidson Softail Fat Boy - FLSTF
2015 Harley-Davidson Softail Fat Boy - FLSTF
2014 Harley-Davidson Softail Fat Boy - FLSTF
2013 Harley-Davidson Softail Fat Boy - FLSTF
2012 Harley-Davidson Softail Fat Boy - FLSTF
2011 Harley-Davidson Softail Fat Boy - FLSTF
2010 Harley-Davidson Softail Fat Boy - FLSTF
2009 Harley-Davidson Softail Fat Boy - FLSTF
2008 Harley-Davidson Softail Fat Boy (EFI) - FLSTF
2007 Harley-Davidson Softail Fat Boy (EFI) - FLSTF
2016 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2015 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2014 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2013 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2012 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2011 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2010 Harley-Davidson Softail Fat Boy Lo - FLSTFB
2017 Harley-Davidson Softail Fat Boy S - FLSTFBS
2016 Harley-Davidson Softail Fat Boy S - FLSTFBS
2009 Harley-Davidson Softail Night Train - FXSTB
2008 Harley-Davidson Softail Night Train (EFI) - FXSTB
2007 Harley-Davidson Softail Night Train (EFI) - FXSTB
2009 Harley-Davidson Softail Rocker - FXCW
2008 Harley-Davidson Softail Rocker (EFI) - FXCW
2011 Harley-Davidson Softail Rocker C - FXCWC
2010 Harley-Davidson Softail Rocker C - FXCWC
2009 Harley-Davidson Softail Rocker C - FXCWC
2008 Harley-Davidson Softail Rocker C (EFI) - FXCWC
2017 Harley-Davidson Softail Slim - FLS
2016 Harley-Davidson Softail Slim - FLS
2015 Harley-Davidson Softail Slim - FLS
2014 Harley-Davidson Softail Slim - FLS
2013 Harley-Davidson Softail Slim - FLS
2012 Harley-Davidson Softail Slim - FLS
2017 Harley-Davidson Softail Slim S - FLSS
2016 Harley-Davidson Softail Slim S - FLSS
2007 Harley-Davidson Softail Springer Classic (EFI) - FLSTSC
2007 Harley-Davidson Softail Standard (EFI) - FXST
2006 Harley-Davidson Street Bob Injected - FXDB I
2016 Harley-Davidson Street Glide - FLHX
2015 Harley-Davidson Street Glide - FLHX
2014 Harley-Davidson Street Glide - FLHX
2013 Harley-Davidson Street Glide - FLHX
2012 Harley-Davidson Street Glide - FLHX
2011 Harley-Davidson Street Glide - FLHX
2010 Harley-Davidson Street Glide - FLHX
2009 Harley-Davidson Street Glide - FLHX
2008 Harley-Davidson Street Glide (EFI) - FLHX
2007 Harley-Davidson Street Glide (EFI) - FLHX
2016 Harley-Davidson Street Glide - FLHXSE
2015 Harley-Davidson Street Glide - FLHXSE
2010 Harley-Davidson Street Glide - FLHXSE
2011 Harley-Davidson Street Glide - FLHXSE 2
2012 Harley-Davidson Street Glide - FLHXSE 3
2016 Harley-Davidson Street Glide Special - FLHXS
2015 Harley-Davidson Street Glide Special - FLHXS
2014 Harley-Davidson Street Glide Special - FLHXS
2011 Harley-Davidson Street Glide Trike - FLHXXX
2010 Harley-Davidson Street Glide Trike - FLHXXX
2016 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2015 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2014 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2013 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2012 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2011 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2010 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2009 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
