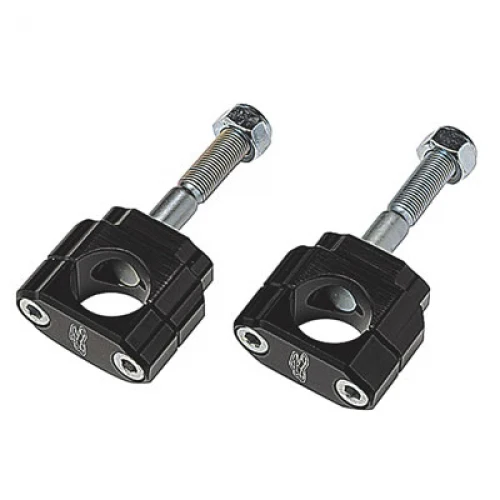

RENTHAL CL003 - Bar Mount - 28.6mm Fatbar / Twinwall - Zero Offset - For Suzuki RM

Renthal Bar Mounts

Part Number: CL002

• Bar mounts allow you to fit a Renthal Fatbar or Twinwall to a motorcycle which has 7/8 in. handlebars fitted as original equipment.
• Clamps are CNC precision machined from 6082 T6 solid billet, high strength aluminum alloy.
• Bolts are CNC machined from nickel chromium molybdenum 817M40 steel that’s hardened and tempered to grade W strength.
• Sold as a pair.

Fits:

2005 Suzuki RM125
2002-04 Suzuki RM250

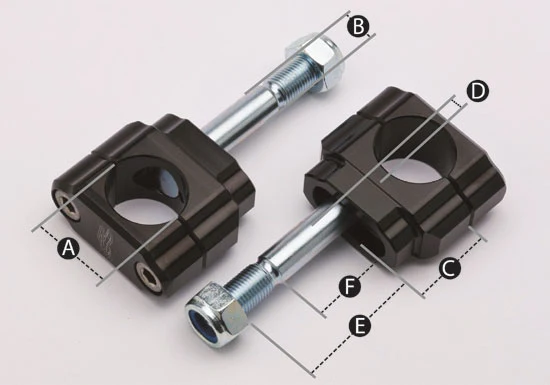

• A: 28mm
• B: 10mm
• C: 32mm
• D: 0mm
• E: 49mm
• F: 34mm

​Renthal’s 1 1/8” (28.6mm) handlebar mounts are designed to allow the mounting of oversized 1 1/8” handlebars, such as the Twinwall or Fatbar, on certain model motorcycles which are equipped with 7/8” handlebars as standard.  These are CNC machined from 6086 T-6 billet aluminum and black anodized with laser etched Renthal logo.

The mounting studs are a special CNC machined hardened nickel chromoly steel with a machined relief to allow for the bending of the stud in the event of a hard crash.  Our 1 1/8” mounts are meant to be a direct OEM replacement for the stock 7/8” mounts and will replicate the OEM bar position and height.

The clamps are CNC precision machined from 6082 T6 solid billet, high strength aluminium alloy. Precision CNC machining ensures a perfect fit between the handlebar and clamp for maximum clamping strength. The bolts are CNC machined from nickel chromium molybdenum 817M40 steel and the hardened and tempered to grade W strength. A unique bolt head design with part hemispherical seating blended into the shank minimises the chance of bolt failure. Renthal bar mounts are designed to replicate the bar postion of the OE bar mounts. Black anodised finish. Please note Renthal bar mounts are designed to utilize the OE rubber cones.
