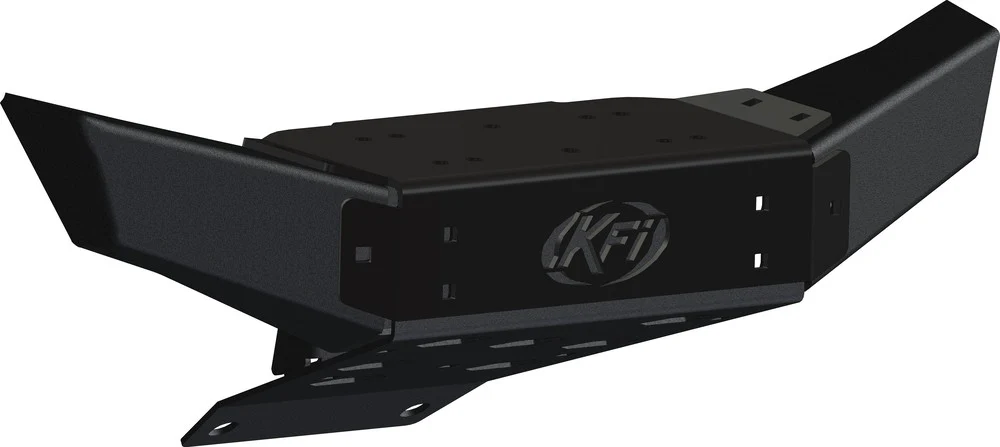

KFI Winch Mount Kit for 2018-20 Arctic Cat Wildcat XX - 101655
KFI Front Bumper Winch Mount Kit
Part Number: 101655
- Constructed of 10 Gauge Grade 50 steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Roller fairlead and winch not included
- Made in USA
Compatible with Winches that have standard mounting patterns:
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Notes:
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S Requires Wide fairlead bracket #100695 and Requires Winch Spacer Kit #101210.
- WARN: AXON 35 / AXON 35-S / AXON 45RC Requires Standard fairlead bracket #101715.
- WARN:VRX 45 / VRX 45-S Requires Wide fairlead bracket #100695.
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S Requires Standard fairlead bracket #101715.
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | KFI Products Winch Mounts |
| Part Number | 101655 |
| Fitment Type | |
| Unit Sale Qty | Kit |
| Style | Winch Bumper with Mount |
| Material | Grade 50 Steel |
| Color | Black |
| Size | |
| Finish | Powder-Coated Black |
| Position | Front |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
2020 Arctic Cat Wildcat XX
2019 Arctic Cat Wildcat XX
2018 Arctic Cat Wildcat XX
$131.00
KFI Winch Mount Kit for 2018-20 Arctic Cat Wildcat XX - 101655—
$131.00
