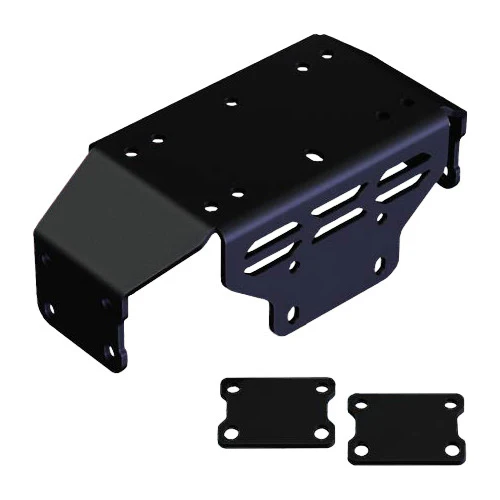

KFI Products Winch Mount

Part Number: 101215

• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Roller fairlead and winch not included
• 100% MADE IN USA

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep. Constructed of grade 50 steel and powder coated black for supreme durability. Includes complete installation instructions and hardware. Easy to install and made in the USA.

Fits: 2015-19 Honda SXS500M2 Pioneer 500

Note: This mount is mounted up higher to keep it out of the elements and allow it to fit larger winches.

Designed to work with the following winches:

• KFI:  ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI:  AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Standard fairlead bracket #101715.
• WARN: VRX 45 / VRX 45-S
  • Requires Wide fairlead bracket #100695.
• WARN: AXON 35 / AXON 35-S / AXON 45RC
  • Requires Standard fairlead bracket #101715.
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
  • Requires Wide fairlead bracket #100695.
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-4000lb
• WARN: ProVantage 2500-4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND 2-Hole Winches : 68146 / 61258 / 61297 / 61840
• BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
• BADLAND WIDE Winches : 61384 / 68144 / 61605
• CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
• CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
• CHAMPION WIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER : KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT : XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM:  2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
  • All with 3.00" x 6.600" bolt pattern mount-up.
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requries roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35
