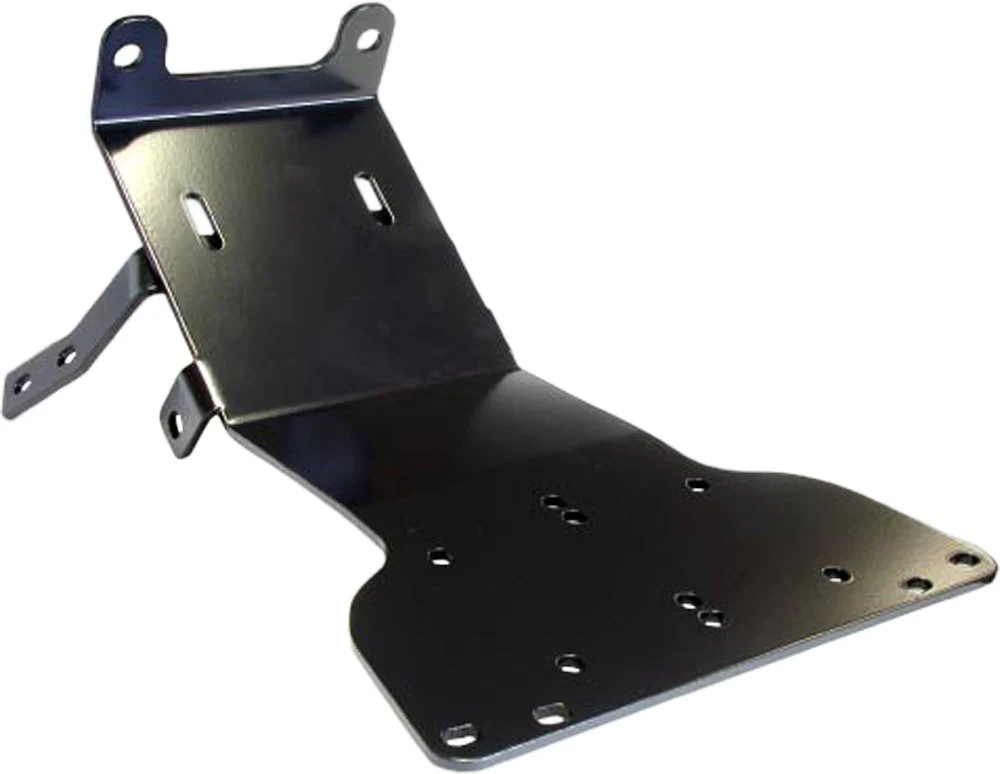

KFI Products Winch Mount

Part Number: 100505

• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Roller fairlead and winch not included
• 100% Made in the USA

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep. Constructed of grade 50 steel and powder coated black for supreme durability. Includes complete installation instructions and hardware. Easy to install and made in the USA.

Fits: Honda TRX350 / TRX400 Rancher models

Designed to work with the following winches:

• KFI:  ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI:  AS-50 (Requires purchase of ATV-MR)
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK : 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER : KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• SMITTYBILT : XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM:  2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35
