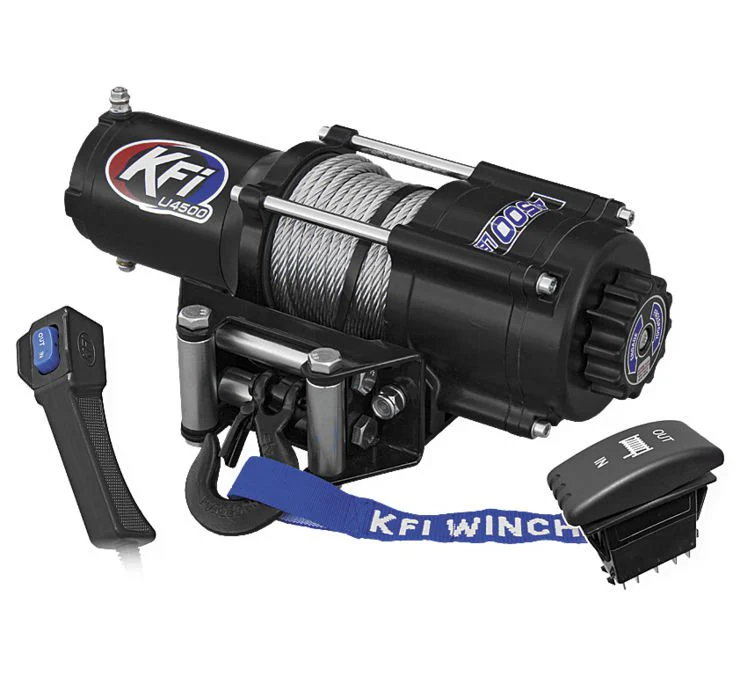

KFI Products 4500 Series Winch - Wide - U45W-R2
KFI Products 4500 Series Winch
Part Number: U45W-R2
Style: Wide
- Features water-resistant seals to keep the elements out,
- Heavy-duty, all metal turn clutch.
- Rated line pull: 4,500 lbs.
- Motor: 12-Volt DC, 1.7hp permanent magnet
- Gear ratio: 166:1
- Cable: 15/64”D x 52’ L
- Winch dimensions: 16.36”L x 4.55”D x 5”H
- Mounting bolt pattern: 3” x 6.6” 4-hole
- Weight: 35.5 lbs.
- Handheld remote included
- Dash switch
- Made in USA
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | KFI Products 4500 Stealth Series Winch |
| Part Number | U45w-R2 |
| Fitment Type | |
| Unit Sale Qty | |
| Style | Wide |
| Material | |
| Color | Black |
| Size | |
| Finish | |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
$294.00
KFI Products 4500 Series Winch - Wide - U45W-R2—
$294.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
KFI Products 4500 Series Winch
Part Number: U45W-R2
Style: Wide
- Features water-resistant seals to keep the elements out,
- Heavy-duty, all metal turn clutch.
- Rated line pull: 4,500 lbs.
- Motor: 12-Volt DC, 1.7hp permanent magnet
- Gear ratio: 166:1
- Cable: 15/64”D x 52’ L
- Winch dimensions: 16.36”L x 4.55”D x 5”H
- Mounting bolt pattern: 3” x 6.6” 4-hole
- Weight: 35.5 lbs.
- Handheld remote included
- Dash switch
- Made in USA
