KFI Products Stealth Series Winch

Part Number: SE45-R2

• Rated line pull: 4,500 lbs.
• Motor: 12-Volt DC, 1.7hp permanent magnet
• Gear ratio: 166:1
• Gear/Transmission: All-metal, planetary gear drive
• Brake: Dynamic and Mechanical
• Clutch: All-metal, cam activated freespool
• Drum Size: 2" D x 3.19" L
• Standard synthetic cable: 15/64" D x 38’ L
• Fairlead: Multi-directional roller

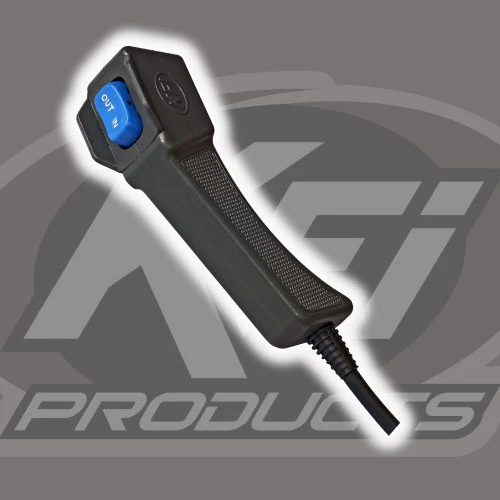

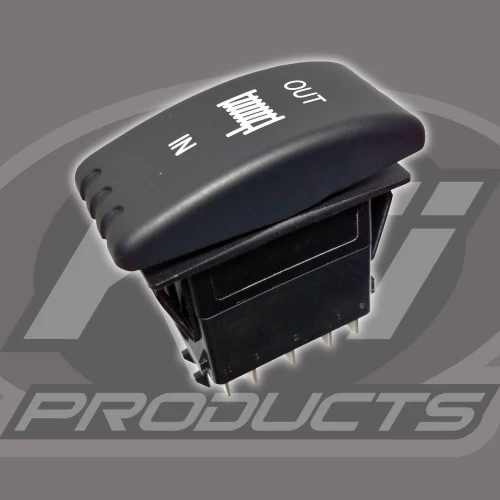

• Control: Deluxe, handlebar-mounted, mini-rocker control switch with optional dash mount bracket and a heavy-duty corded remote switch
• Standard winch dimensions: 14.6" L x 4.55" D x 5" H
• Standard mounting bolt pattern: 3.00" x 4.875" four hole
• One-year limited manufacturers warranty
• Winch weight: 36 lbs.

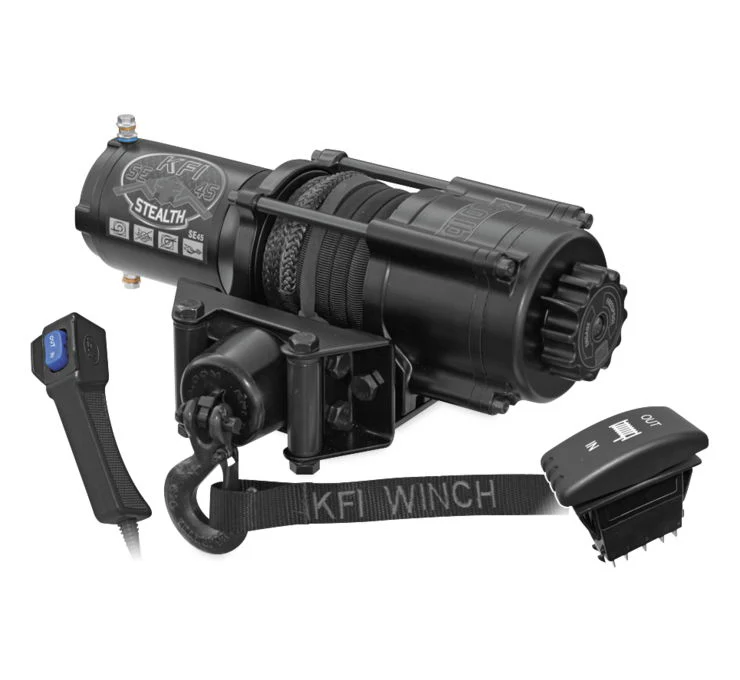

​Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have.  Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation.  This 4500lb ATV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic, mechanical, and drum braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch.  It is also backed by a KFI 1-Year Limited Warranty.  The KFI SE45 Stealth Winch comes with everything you need other than an ATV model specific winch mount.  Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

Additional Information:

• Model: SE45 UTV Series
• Rated Line Pull: 4500 lbs.
• Motor: 12V DC, 1.7 hp Permanent Magnet
• Gear Ratio: 166:1
• Gear/Transmission: All-metal Planetary Gear Drive
• Brake: Dynamic and Mechanical
• Clutch (free spooling): All Metal Cam Activated Freespool
• Drum Size: 2.0" (D) x 3.19" (L)
• Synthetic Cable: 15/64" (D) x 38' (L) Smoke color
• Fairlead: Multi-directional Roller
• Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
• Winch Dimensions: 14.6" L x 4.55" D x 4.82" H
• Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
• Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
• Recommended Battery : 12 Amp/hour minimum
• Warranty: Limited 1 Year
• Winch Weight: 33.65 lbs. (complete kit)
