KFI Products Multi-Mount Kit for Polaris Ranger Models - UTV-875
KFI Products Multi-Mount Kit
Model Number: UTV-875
- Constructed of 3/16" steel
- Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Roller fairlead and winch not included
- Made in the USA
Compatible with the standard mounting patterns:
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Notes:
- This mount requires a roller fairlead bracket that comes with most of the winches out there.
- If your winch kit did not come with a fairlead bracket you will need KFI part #100495 for Standard 3.00"x4.875" bolt pattern winches, and #100695 for Wide 3.00"x6.60 bolt pattern winches.
- This kit will allow you to mount your winch on the front or the rear of your Polaris ranger using the stock rear 2" receiver and the supplied front 2" receiver.
- This kit is for the "Newer Body Style" of the machines listed bellow.
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | KFI Products Multi-Mount Kits |
| Part Number | UTV-875-Y |
| Fitment Type | |
| Unit Sale Qty | Kit |
| Style | |
| Material | Grade 50 Steel |
| Color | Black |
| Size | |
| Finish | |
| Position | Front |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |

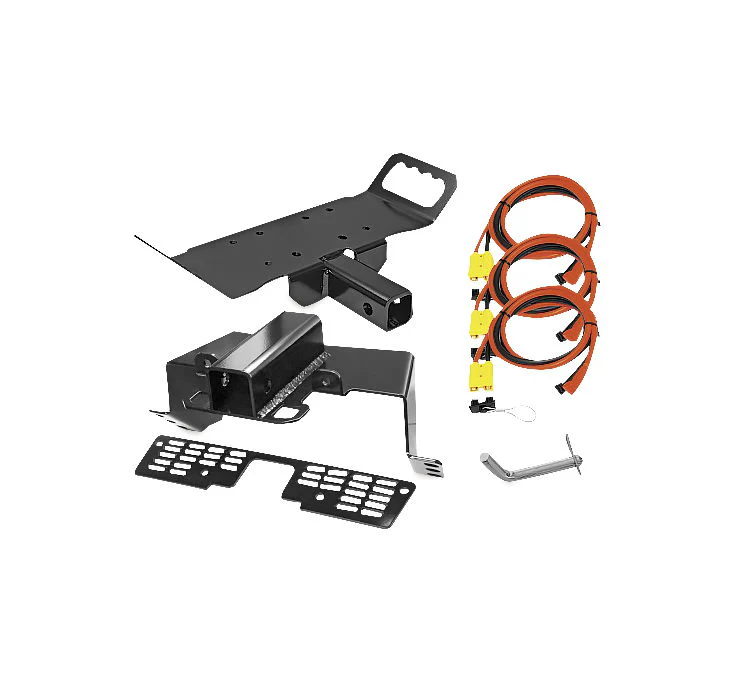

(1) Front upper 2" receiver that mounts in the location shown in the picture (#100875)
(1) 2" Receiver Winch Mount (#100620)
(1) 20" Quick Connect that gets wired to your winch leads (#QC-20)
(1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)
(1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)
(1) Standard 5/8" Hitch Pin
2014 Polaris Ranger 900 Diesel Full-Size 4x4
2013 Polaris Ranger 900 Diesel Full-Size 4x4
2012 Polaris Ranger 900 Diesel Full-Size 4x4
2011 Polaris Ranger 900 Diesel Full-Size 4x4
2010 Polaris Ranger 500 Full-Size 4x4
2009 Polaris Ranger 500 Full-Size 4x4
2021 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2020 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2019 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2018 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2017 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2016 Polaris Ranger 570 Full-Size 4x4 (800 Body Style)
2009 Polaris Ranger 700 Full-Size 4x4
2014 Polaris Ranger 800 Full-Size 4x4
2013 Polaris Ranger 800 Full-Size 4x4
2012 Polaris Ranger 800 Full-Size 4x4
2011 Polaris Ranger 800 Full-Size 4x4
2010 Polaris Ranger 800 Full-Size 4x4
2021 Polaris Ranger EV Midsize
2020 Polaris Ranger EV Midsize
2019 Polaris Ranger EV Midsize
2018 Polaris Ranger EV Midsize
2017 Polaris Ranger EV Midsize
2016 Polaris Ranger EV Midsize
2015 Polaris Ranger EV Midsize
2014 Polaris Ranger EV Midsize
2013 Polaris Ranger EV Midsize
2012 Polaris Ranger EV Midsize
2011 Polaris Ranger EV Midsize
2010 Polaris Ranger EV Midsize
2016 Polaris Ranger ETX Midsize
2015 Polaris Ranger ETX Midsize
2014 Polaris Ranger 400 Midsize 4x4
2013 Polaris Ranger 400 Midsize 4x4
2012 Polaris Ranger 400 Midsize 4x4
2011 Polaris Ranger 400 Midsize 4x4
2010 Polaris Ranger 400 Midsize 4x4
2020 Polaris Ranger 500 Midsize 4x4
2019 Polaris Ranger 500 Midsize 4x4
2018 Polaris Ranger 500 Midsize 4x4
2017 Polaris Ranger 500 Midsize 4x4
2013 Polaris Ranger 500 Midsize 4x4
2012 Polaris Ranger 500 Midsize 4x4
2011 Polaris Ranger 500 Midsize 4x4
2021 Polaris Ranger 570 Midsize 4x4
2020 Polaris Ranger 570 Midsize 4x4
2019 Polaris Ranger 570 Midsize 4x4
2018 Polaris Ranger 570 Midsize 4x4
2017 Polaris Ranger 570 Midsize 4x4
2016 Polaris Ranger 570 Midsize 4x4
2015 Polaris Ranger 570 Midsize 4x4
2014 Polaris Ranger 570 Midsize 4x4
2014 Polaris Ranger 800 Midsize 4x4
2013 Polaris Ranger 800 Midsize 4x4
