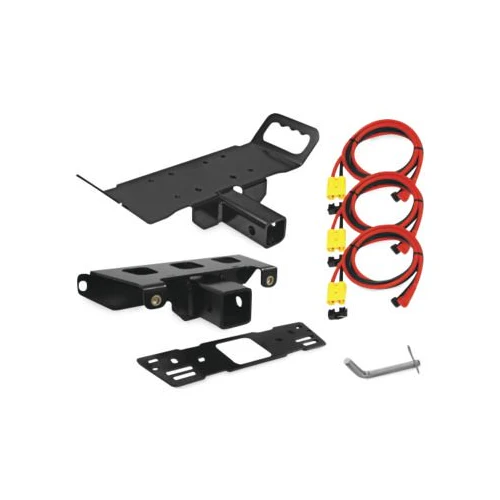

KFI Products UTV Multi-Mount Kit

Part Number: UTV-1080-Y

• Constructed of 3/16" steel

• metal bead blasted before they are powder coated for the best possible finish prep.

• Powder coated black for supreme durability

• Complete installation instructions included

• All mounting hardware included

• Satisfaction guaranteed

• Roller fairlead and winch not included

• 100% MADE IN USA

Designed to work with the following winches:
(Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.  If your winch kit did not come with a fairlead bracket you will need KFI part#100495 for Standard 3.00"x4.875" bolt pattern winches and#100695for Wide 3.00"x6.60 bolt pattern winches.)

• KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2

• KFI:  AS-50 / AS-50w

• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce

• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30

• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs

• WARN:RT40 / XT40

• WARN:Vantage 4000lbs / Provantage 4500lbs

• RAMSEY : ATV2500 / ATV3000

• SUPERWINCH : Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000

• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

• MASTER LOCK :1500lbs #2955AT
  Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500

• BADLAND :2000lb #68146
  Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  Listed models come with incorrect ATV roller fairleads

• BADLAND :3000lb #68145 / 5000lb #68144

• CHAMPION :C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501(requires rollers) / 14061

• CHAMPION :14501 / 14551 / 14552 / 40252 (4500lbs)

• CHAMPION :10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145
  Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  Listed models come with incorrect ATV roller fairleads

• CHAMPION:14001 and 14061

• SMITTYBILT :XRC 2.0
  Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  Listed models come with incorrect ATV roller fairleads

• SMITTYBILT :XRC 3.0

• XGEAR:  X3000 / X4000
  4-Hole Standard (3.00" x 4.875" bolt pattern)

• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  All with 3.00" x 4.875" bolt pattern mount-up
  All with 3.00" x 6.600" bolt pattern mount-up

• Possibly many others with the below standard mounting patterns, call to confirm.
  4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  2-Hole (3.10" with rollers that are 4.875" bolt pattern)
