KFI Dash Rocker Switch Kit for UTV

Part Number: UTV-DRS-K
Kit Includes: Winch Rocker Switch & Complete 10' Wire Harness with Plug

• This kit includes the Rocker Switch and the 10' Wire Harness with plug for easy wiring installation
• Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor

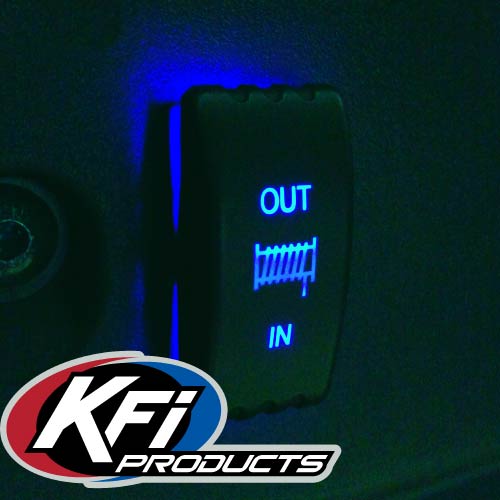

• Blue LED illuminated when your key is turned on to allow you to see at night
• Circuit Type (ON)-OFF-(ON)
• Double pole Switch. This mean two contact points instead of just one for better repeatability operation.

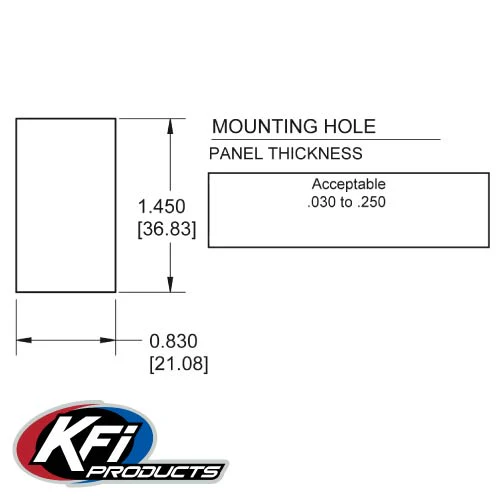

• Requires Mounting hole 0.830” x 1.450” (standard on most UTV’s)
• Works with Panel Thickness ranging from .030” to .250” thick
• Max Current Rating: 20A 12VDC and 15A 24VDC
• Silver Plated Terminals
• Requires Standard ATV Winch Contactor to control Winch

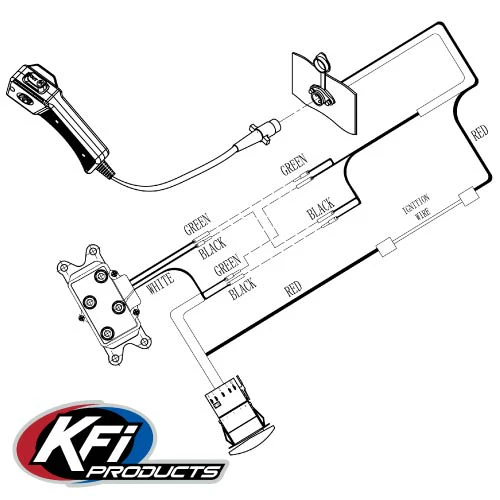

• See Wiring Schematic
