KFI Products ATV Series Winch

Part Number: A3000

• Rated line pull: 3,000 lbs.
• Motor: 12-Volt DC, 1.5hp permanent magnet
• Gear ratio: 171:1
• Cable: 3/16” D x 45.9’ L
• Winch dimensions: 12.67” L x 4.06” D x 4.2” H
• Mounting bolt pattern: 3.00” x 4.875” 4-hole
• Winch weight: 24.8 lbs.
• Handheld remote included

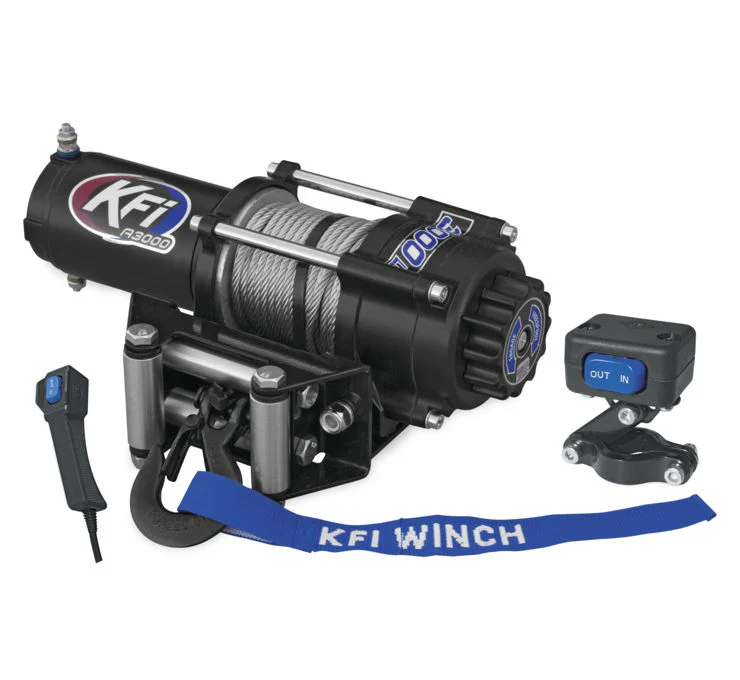

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have.  Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation.  This 3000lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch.  It is also backed by a "KFI 1-Year Limited Warranty".  The KFI A3000 winch comes with everything you need other than an ATV model specific winch mount.  Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

Additional Information:

• Model: A3000 ATV Series
• Rated Line Pull: 3000 lbs.
• Motor: 12V DC, 1.5 hp Permanent Magnet
• Gear Ratio: 171:1
• Gear/Transmission: All-metal Planetary Gear Drive
• Brake: Dynamic and Mechanical
• Clutch (free spooling): All Metal Cam Activated Freespool
• Drum Size: 1.5" (D) x 3.32" (L)
• Cable: 3/16" (D) x 45.9' (L)
• Fairlead: Multi-directional Roller
• Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch
• Winch Dimensions: 13.39" L x 4.06" D x 4.29" H
  Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
• Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
• Recommended Battery : 12 Amp/hour minimum
• Warranty: Limited 1 Year
• Winch Weight: 24.8 lbs. (complete kit)
