High Lifter Snorkel Kit

Part Number: SNORK-H1000P

• First in the industry to utilize custom molded high temperature silicon hoses in routing areas

• Custom molded silicone hoses allow for easier installation, shorter install times with more reliable connections

• Works with factory cab enclosure and back glass application

• Utilizes the belt exhaust for heat dissipation by blowing belt exhaust across the manifold, same as factory

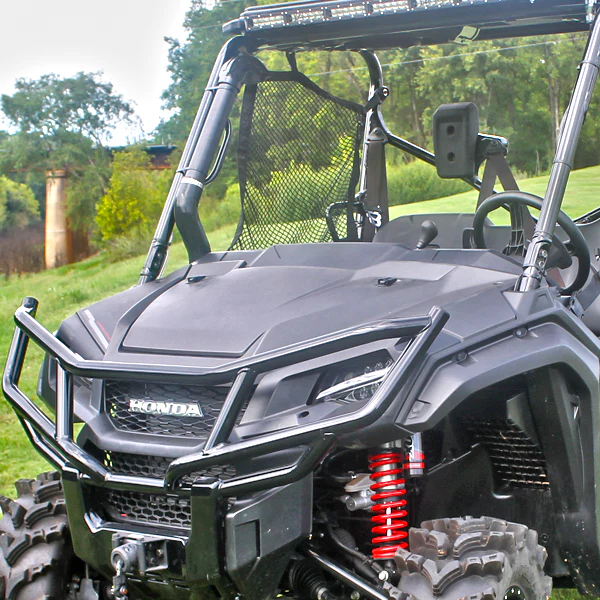

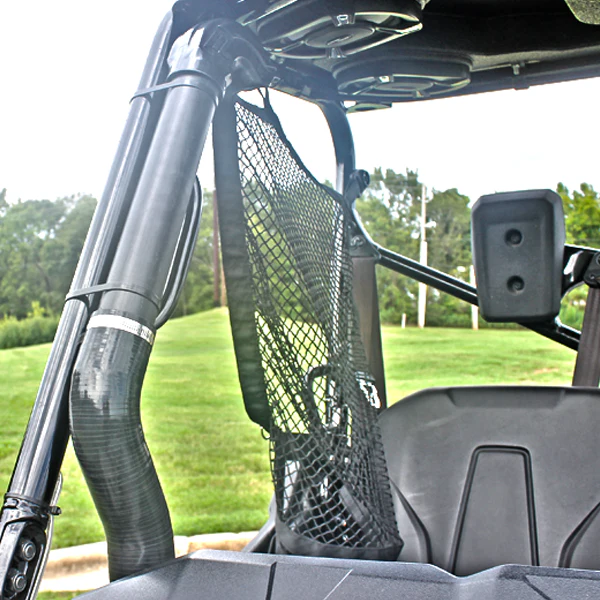

• Superior rear view as compared to other snorkels due to careful snorkel riser placement.  It does not block the rear view when looking into the bed or behind the Ranger.

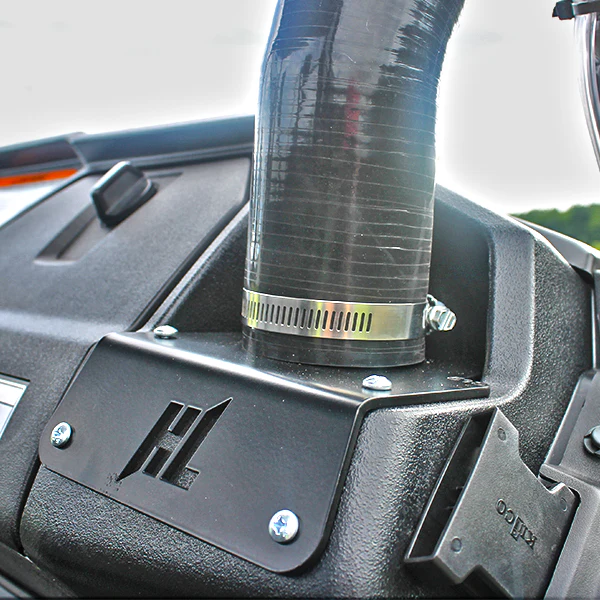

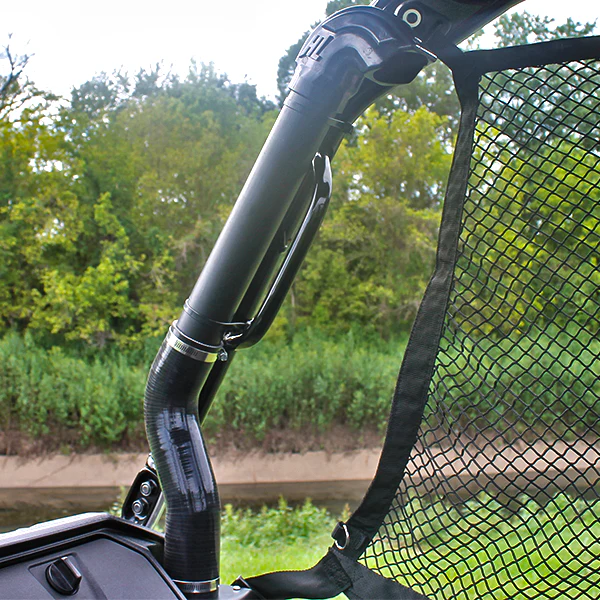

• Powder Coated Riser Bracket to keep risers straight, evenly spaced and looking good

• Rubber Grommets hold riser tubes in place and prevent rattles while riding

• 2” High Lifter riser caps

• Bellows allow the differential and transmission air to expand and contract without the need for long vent lines that can easily get plugged with mud or be pulled off

• All mounting hardware for complete installation
• Made in America

This ground-breaking snorkel is the first in the industry to utilize new high temperature silicon hoses molded for specific applications. High Lifter has addressed heat issues by using the belt exhaust for heat dissipation by blowing belt exhaust across the manifold. Additional features include positioning the risers to be less obstructive and offer optimal rear visibility unlike other competitors on the market that obstruct a rider’s view. This kit offers advanced design plus a sleek branded riser bracket and 2 inch custom snorkel caps.

NOTE:  For the Honda Pioneer 1000 Special or 1000 Limited Edition the compartment in the dash that the cup holder relocation bracket attaches to is not on these models. You will lose the use of this bracket and the factory cup holder.
