Feuling Vented Dipstick for Harley M8 Bagger - 3087

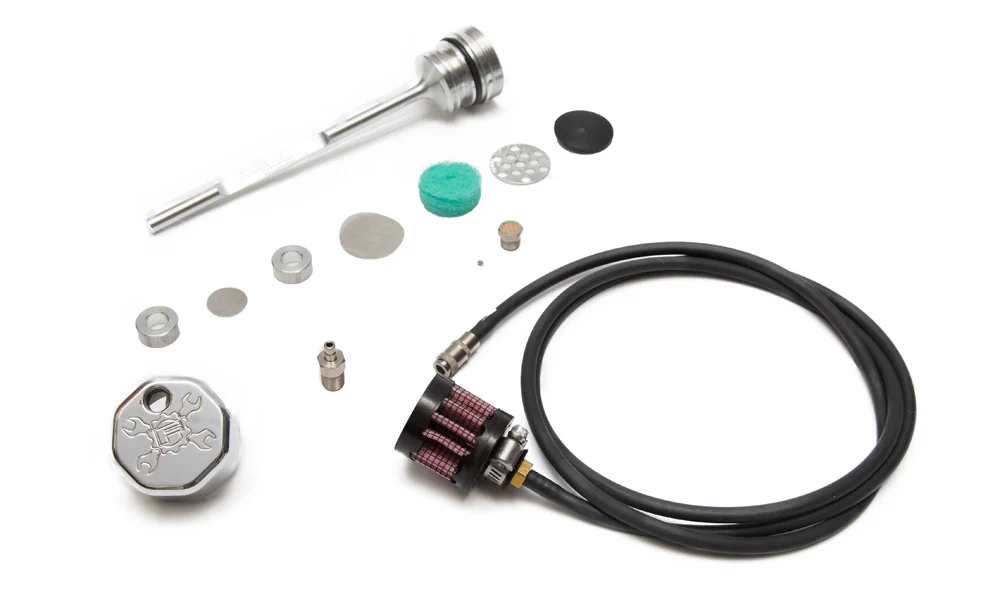

Feuling Vented Dipstick
- Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
- This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders which is a common issue with large displacement big bore engines
- Test results show a decrease in engine sump oil levels
- Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve
- There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
- If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
- When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
- Made in the USA
Note: The oil pick-up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
Choose from two venting style options when installing the dipstick:
- Option 1: is to use the 1/8 NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by)
-
Option 2: is to use quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil)
- For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
| Product Line | Feuling Vented Dipstick |
| Part Number | 3087 |
| Fitment Type | Model-Specific Fitment |
| Use Type | |
| Unit Sale Qty | Kit |
| Style | |
| Size | |
| Position | |
| Material | Aluminum |
| Color | Polished |
| Finish | |
| Functional Length | |
| California Emissions | FALSE |
| Product Disclaimer | |
| Fitment Note | |
| Fitment Note | |
| Fitment Note | |
| Fitment Note |
2020 Harley-Davidson CVO Road Glide Custom - FLTRXSE
2020 Harley-Davidson Electra Glide Police - FLHTPI
2019 Harley-Davidson Electra Glide Police - FLHTPI
2020 Harley-Davidson Road Glide Special - FLTRXS
2019 Harley-Davidson Road Glide Special - FLTRXS
2018 Harley-Davidson Road Glide Special - FLTRXS
2017 Harley-Davidson Road Glide Special - FLTRXS
2020 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2019 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2018 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2017 Harley-Davidson Tri Glide Ultra Classic - FLHTCUTG
2020 Harley-Davidson Road King Special - FLHRXS
2019 Harley-Davidson Road King Special - FLHRXS
2018 Harley-Davidson Road King Special - FLHRXS
2017 Harley-Davidson Road King Special - FLHRXS
2020 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2019 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2018 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2017 Harley-Davidson Electra Glide Ultra Limited - FLHTK
2020 Harley-Davidson Freewheeler - FLRT
2019 Harley-Davidson Freewheeler - FLRT
2018 Harley-Davidson Freewheeler - FLRT
2017 Harley-Davidson Freewheeler - FLRT
2020 Harley-Davidson Road Glide Limited - FLTRK
2020 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2019 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2018 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2017 Harley-Davidson Electra Glide Ultra Limited - FLHTKSE
2020 Harley-Davidson Street Glide Special - FLHXS
2019 Harley-Davidson Street Glide Special - FLHXS
2018 Harley-Davidson Street Glide Special - FLHXS
2017 Harley-Davidson Street Glide Special - FLHXS
2019 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2018 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2017 Harley-Davidson Electra Glide Ultra Limited Low - FLHTKL
2020 Harley-Davidson Tri Glide - CVO
2019 Harley-Davidson Street Glide EFI - FLHX
2018 Harley-Davidson Street Glide EFI - FLHX
2017 Harley-Davidson Street Glide EFI - FLHX
2019 Harley-Davidson Road King EFI - FLHR
2018 Harley-Davidson Road King EFI - FLHR
2017 Harley-Davidson Road King EFI - FLHR
2020 Harley-Davidson Road Glide Custom - FLTRX
2019 Harley-Davidson Road Glide Custom - FLTRX
2018 Harley-Davidson Road Glide Custom - FLTRX
2017 Harley-Davidson Road Glide Custom - FLTRX
2019 Harley-Davidson Road Glide Ultra - FLTRU
2018 Harley-Davidson Road Glide Ultra - FLTRU
2017 Harley-Davidson Road Glide Ultra - FLTRU
2019 Harley-Davidson Electra Glide Ultra Classic EFI - FLHTCUI
2018 Harley-Davidson Electra Glide Ultra Classic EFI - FLHTCUI
2017 Harley-Davidson Electra Glide Ultra Classic EFI - FLHTCUI
2018 Harley-Davidson Electra Glide Police - FLHTPI
2017 Harley-Davidson Electra Glide Police - FLHTPI
2019 Harley-Davidson Street Glide - FLHXSE
2018 Harley-Davidson Street Glide - FLHXSE
2017 Harley-Davidson Street Glide - FLHXSE
2019 Harley-Davidson Road Glide Custom - FLTRXSE
2018 Harley-Davidson Road Glide Custom - FLTRXSE
2019 Harley-Davidson Electra Glide Standard EFI - FLHTI
2020 Harley-Davidson Road King EFI - FLHR
2020 Harley-Davidson Street Glide - FLHXSE
2020 Harley-Davidson Street Glide EFI - FLHX
2020 Harley-Davidson Electra Glide Standard EFI - FLHTI
