ElectroSport Lighting Stator 6-pole for Suzuki RM125 / RM250 - ESL452

Product image 1

ElectroSport Lighting Stator 6-pole for Suzuki RM125 / RM250 - ESL452

Part Number: ESL452

  • Lighting Stator with aluminum plate
  • Mounts to the OE backing plate of the stator
  • Optimized output so you will have better lights at lower RPMs
  • Manufactured with modern high grade components for optimal performance
  • Comes with a Full One Year Warranty

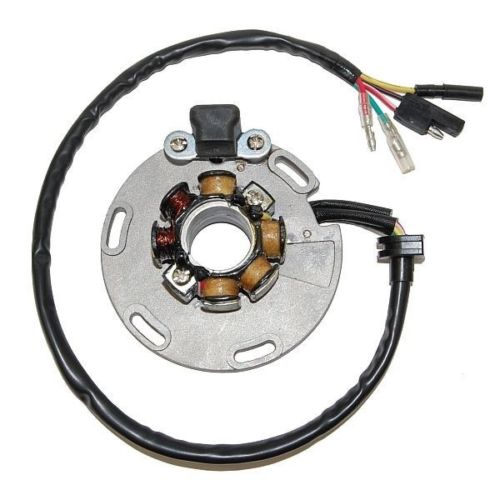

ESL452 is a complete lighting stator for your Suzuki RM that replaces the OE stator in your bike. It comes as an aluminum plate with 6-pole stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator, and it provides a nice lighting output as well. We recommend using a 35W halogen bulb in your headlight, and safeguarding the system with our ESR012 AC Voltage regulator.

Fits:
1987-91 Suzuki RM125
1987-93 Suzuki RM250

Specs
Plate Outside Diameter: 110mm
Stator Outside Diameter: 59mm
Resistance RED/BLACK - WHITE/RED: 195-230 (Source Coil)
Resistance GREEN - RED: 93-112 (Pickup Coil)

Resistance YELLOW - Ground: 0.8-1.2 (Lighting Coil)
