Burly Brand B30-1080 Cable and Brake Line Kits for 2002-06 Harley FLH models
Burly Brand Cable and Brake Line Kit
Product Number: B30-1080
Finish: Braided Stainless Steel
Length: 16 Inches
Style: Ape Hangers without cruise

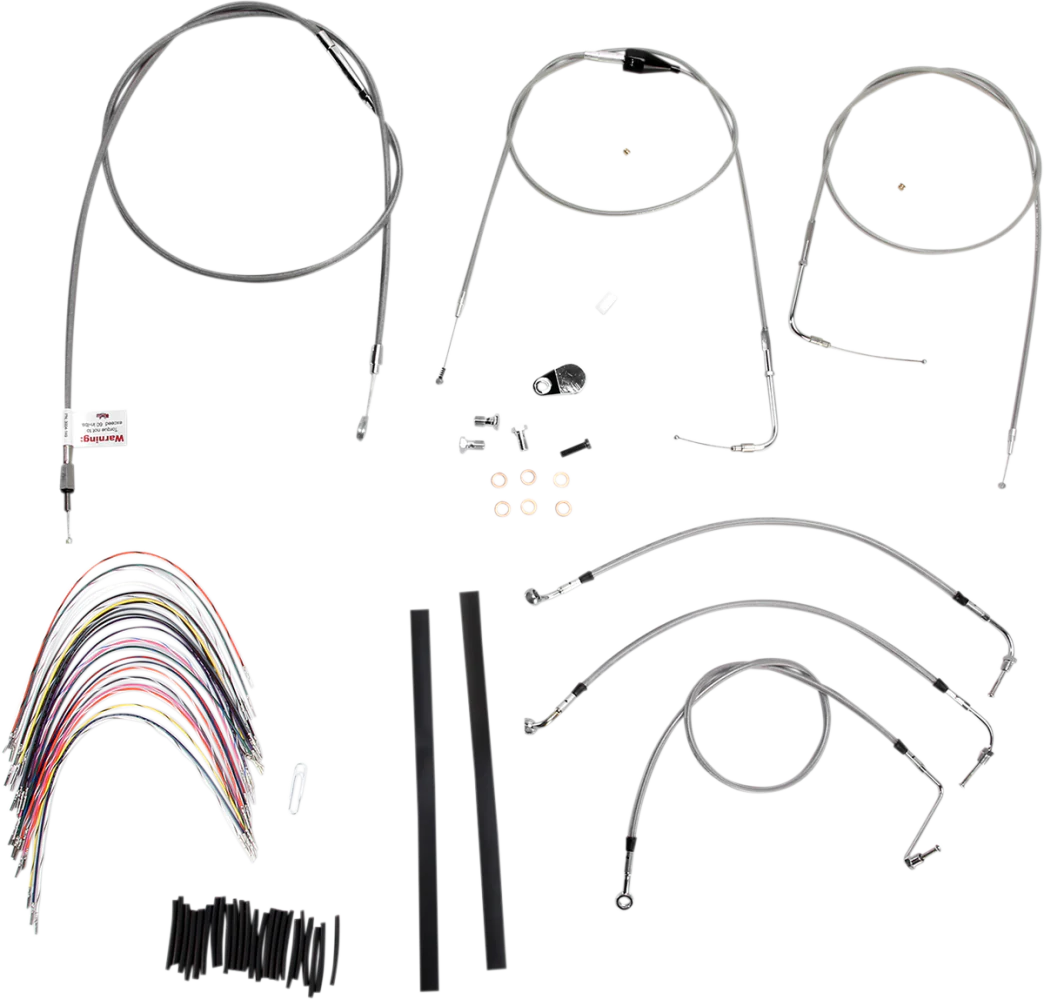

- Complete cable and brake line installation kit
- Brake line, extended clutch cable, extended throttle cables all necessary wiring are all included
- Brake lines feature PTFE inner liner and heavy-duty stainless steel outer braid
- Made in the USA
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | Burly Brand Extended Cable/Brake Line Kit |
| Part Number | B30-1080 |
| Fitment Type | |
| Unit Sale Qty | |
| Style | for 16 inch Hanger Bars without cruise |
| Material | Stainless Steel |
| Color | Chrome |
| Size | |
| Finish | Braided Stainless Steel |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
(1) 40 in. clear brake line with (1) 3/8/10mm 20 degree banjo and (1) AN #3 Male 60 degree fitting
(3) 10mm-1.00 copper crush washers
(6) 3/8 in./10m copper crush washers
(1) 5/16 in.-18 x 1 in. Allen head bolt
(2) 21 in. clear brake lines with (2) 3/8 in./10mm 70 degree banjos and (2) AN #3 male 90 degree fittings
(1) 75 1/4 in. clear clutch line with 2 7/16 in. travel
(1) Clear idle cable
Housing Length: 52 in.
Elbow Length: 4 1/4 in.
Elbow Degree: 90 degree
Travel: Up to 4 in.
(1) Clear throttle cable
Housing Length: 52 in.
Elbow Length: 4 1/4 in.
Elbow Degree: 90 degree
Travel: Up to 4 3/4 in.
(3) Brass barrels
(1) Junction block with drilled mounting hole and (3) AN #3 female fittings
(24) 16 in. wires with male and female connector
(2) 14 in. shrink tubes
(24) 2 1/2 in. shrink tubes
(1) Paperclips
(1) Instructions
2002 Harley-Davidson Road Glide - FLTR
2006 Harley-Davidson Road Glide Injected - FLTR I
2005 Harley-Davidson Road Glide Injected - FLTR I
2004 Harley-Davidson Road Glide Injected - FLTR I
2003 Harley-Davidson Road Glide Injected - FLTR I
2002 Harley-Davidson Road Glide Injected - FLTR I
2006 Harley-Davidson Road King - FLHR
2005 Harley-Davidson Road King - FLHR
2004 Harley-Davidson Road King - FLHR
2003 Harley-Davidson Road King - FLHR
2002 Harley-Davidson Road King - FLHR
2006 Harley-Davidson Road King Classic Injected - FLHRC I
2005 Harley-Davidson Road King Classic Injected - FLHRC I
2004 Harley-Davidson Road King Classic Injected - FLHRC I
2003 Harley-Davidson Road King Classic Injected - FLHRC I
2002 Harley-Davidson Road King Classic Injected - FLHRC I
2006 Harley-Davidson Road King Custom - FLHRS
2005 Harley-Davidson Road King Custom - FLHRS
2004 Harley-Davidson Road King Custom - FLHRS
2006 Harley-Davidson Road King Custom Injected - FLHRS I
2005 Harley-Davidson Road King Custom Injected - FLHRS I
2004 Harley-Davidson Road King Custom Injected - FLHRS I
2006 Harley-Davidson Road King Injected - FLHR I
2005 Harley-Davidson Road King Injected - FLHR I
2004 Harley-Davidson Road King Injected - FLHR I
2003 Harley-Davidson Road King Injected - FLHR I
2002 Harley-Davidson Road King Injected - FLHR I
