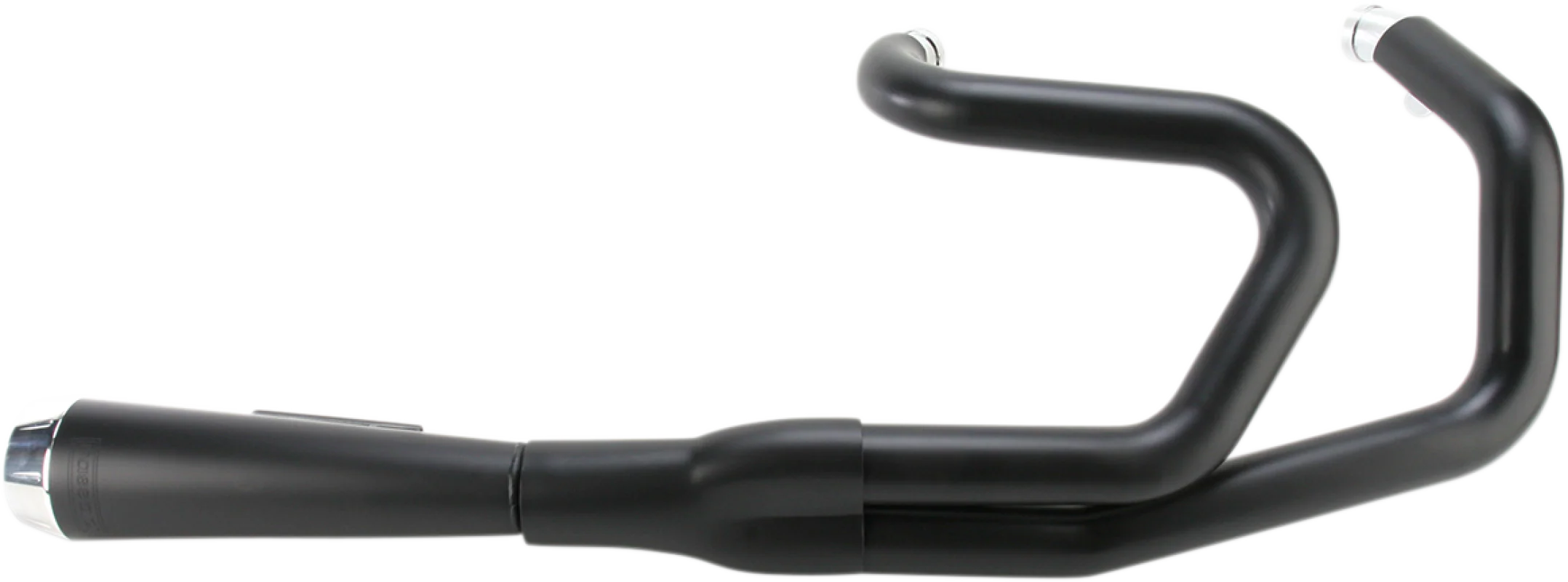

Bassani Road Rage Exhaust for 2004-13 Harley Models - Black - 14122J
Bassani Xhaust Road Rage Exhaust System
Part Number: 14122J
Finish: Black
Style: Short, Unswept, Megaphone Muffler
- 2-into-1 equal-length headers
- Stepped 1-3/4 inch to 1-7/8 inch head pipes
- Utilizes an advanced inner collector for maximum performance
- Made in the USA
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | Bassani Road Rage Exhaust |
| Part Number | 14122J |
| Fitment Type | |
| Unit Sale Qty | Each |
| Style | Megaphone, Short, Upswept |
| Material | Aluminum, Steel |
| Color | Black |
| Size | |
| Finish | Black, Powder-Coated |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | 2-into-1 Full Exhaust System |
| Muffler Size | 4 Inch Muffler Diameter |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | TRUE |
| Product Disclaimer |
(1) Front upper heatshield
(1) Front lower heatshield
(1) Rear upper heatshield
(1) Rear lower heatshield
(1) Collector heatshield
(1) Front/Rear headpipe assembly

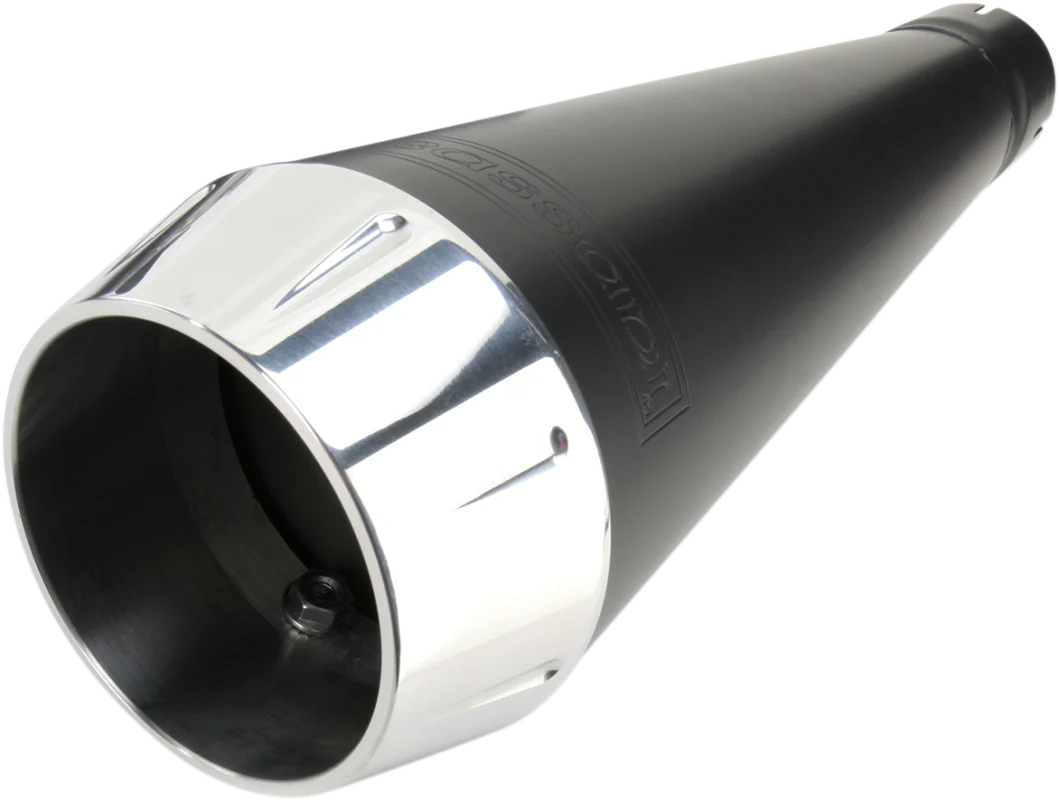

(1) Collector megaphone muffler w/baffles/end cap
(1) 27-73 Barrel band clamp
(4) #24 Hose clamps
(5) #28 Hose clamps
(1) #36 Hose clamp
(2) 12mm O2 fitting plugs
(2) 18mm O2 fitting plugs
(1) Mounting bracket extension
(1) 5 Speed mounting bracket
(2) 3/8 in. Flat washers
(1) 3/8-16 Flange nut
(2) 3/8-16 x 1 in. Hexhead bolts
(1) 3/8 in. Spring lock washer
(1) Installation Instructions
2006 Harley-Davidson Sportster - XL 883
2005 Harley-Davidson Sportster - XL 883
2004 Harley-Davidson Sportster - XL 883
2006 Harley-Davidson Sportster - XL 883R
2005 Harley-Davidson Sportster - XL 883R
2008 Harley-Davidson Sportster (EFI) - XL 883
2007 Harley-Davidson Sportster (EFI) - XL 883
2007 Harley-Davidson Sportster (EFI) - XL 883R
2013 Harley-Davidson Sportster Custom - XL 1200C
2012 Harley-Davidson Sportster Custom - XL 1200C
2011 Harley-Davidson Sportster Custom - XL 1200C
2010 Harley-Davidson Sportster Custom - XL 1200C
2009 Harley-Davidson Sportster Custom - XL 1200C
2006 Harley-Davidson Sportster Custom - XL 1200C
2005 Harley-Davidson Sportster Custom - XL 1200C
2004 Harley-Davidson Sportster Custom - XL 1200C
2009 Harley-Davidson Sportster Custom - XL 883C
2006 Harley-Davidson Sportster Custom - XL 883C
2005 Harley-Davidson Sportster Custom - XL 883C
2004 Harley-Davidson Sportster Custom - XL 883C
2008 Harley-Davidson Sportster Custom (EFI) - XL 1200C
2007 Harley-Davidson Sportster Custom (EFI) - XL 1200C
2008 Harley-Davidson Sportster Custom (EFI) - XL 883C
2007 Harley-Davidson Sportster Custom (EFI) - XL 883C
2013 Harley-Davidson Sportster Forty-Eight - XL 1200X
2012 Harley-Davidson Sportster Forty-Eight - XL 1200X
2011 Harley-Davidson Sportster Forty-Eight - XL 1200X
2010 Harley-Davidson Sportster Forty-Eight - XL 1200X
2013 Harley-Davidson Sportster Iron - XL 883N
2012 Harley-Davidson Sportster Iron - XL 883N
2011 Harley-Davidson Sportster Iron - XL 883N
2010 Harley-Davidson Sportster Iron - XL 883N
2009 Harley-Davidson Sportster Iron - XL 883N
2011 Harley-Davidson Sportster Low - XL 1200L
2010 Harley-Davidson Sportster Low - XL 1200L
2009 Harley-Davidson Sportster Low - XL 1200L
2006 Harley-Davidson Sportster Low - XL 1200L
2010 Harley-Davidson Sportster Low - XL 883L
2009 Harley-Davidson Sportster Low - XL 883L
2006 Harley-Davidson Sportster Low - XL 883L
2005 Harley-Davidson Sportster Low - XL 883L
2008 Harley-Davidson Sportster Low (EFI) - XL 1200L
2007 Harley-Davidson Sportster Low (EFI) - XL 1200L
2008 Harley-Davidson Sportster Low (EFI) - XL 883L
2007 Harley-Davidson Sportster Low (EFI) - XL 883L
2012 Harley-Davidson Sportster Nightster - XL 1200N
2011 Harley-Davidson Sportster Nightster - XL 1200N
2010 Harley-Davidson Sportster Nightster - XL 1200N
2009 Harley-Davidson Sportster Nightster - XL 1200N
2008 Harley-Davidson Sportster Nightster (EFI) - XL 1200N
2007 Harley-Davidson Sportster Nightster (EFI) - XL 1200N
2006 Harley-Davidson Sportster Roadster - XL 1200R
2005 Harley-Davidson Sportster Roadster - XL 1200R
2004 Harley-Davidson Sportster Roadster - XL 1200R
2008 Harley-Davidson Sportster Roadster (EFI) - XL 1200R
2007 Harley-Davidson Sportster Roadster (EFI) - XL 1200R
2013 Harley-Davidson Sportster Seventy Two - XL 1200V
2012 Harley-Davidson Sportster Seventy Two - XL 1200V
2013 Harley-Davidson Sportster SuperLow - XL 883L
2012 Harley-Davidson Sportster SuperLow - XL 883L
2011 Harley-Davidson Sportster SuperLow - XL 883L
