Burly Brand Extended Cable/Brake Line Kit for 12in Handle Bar w/o ABS - Black - B30-1106

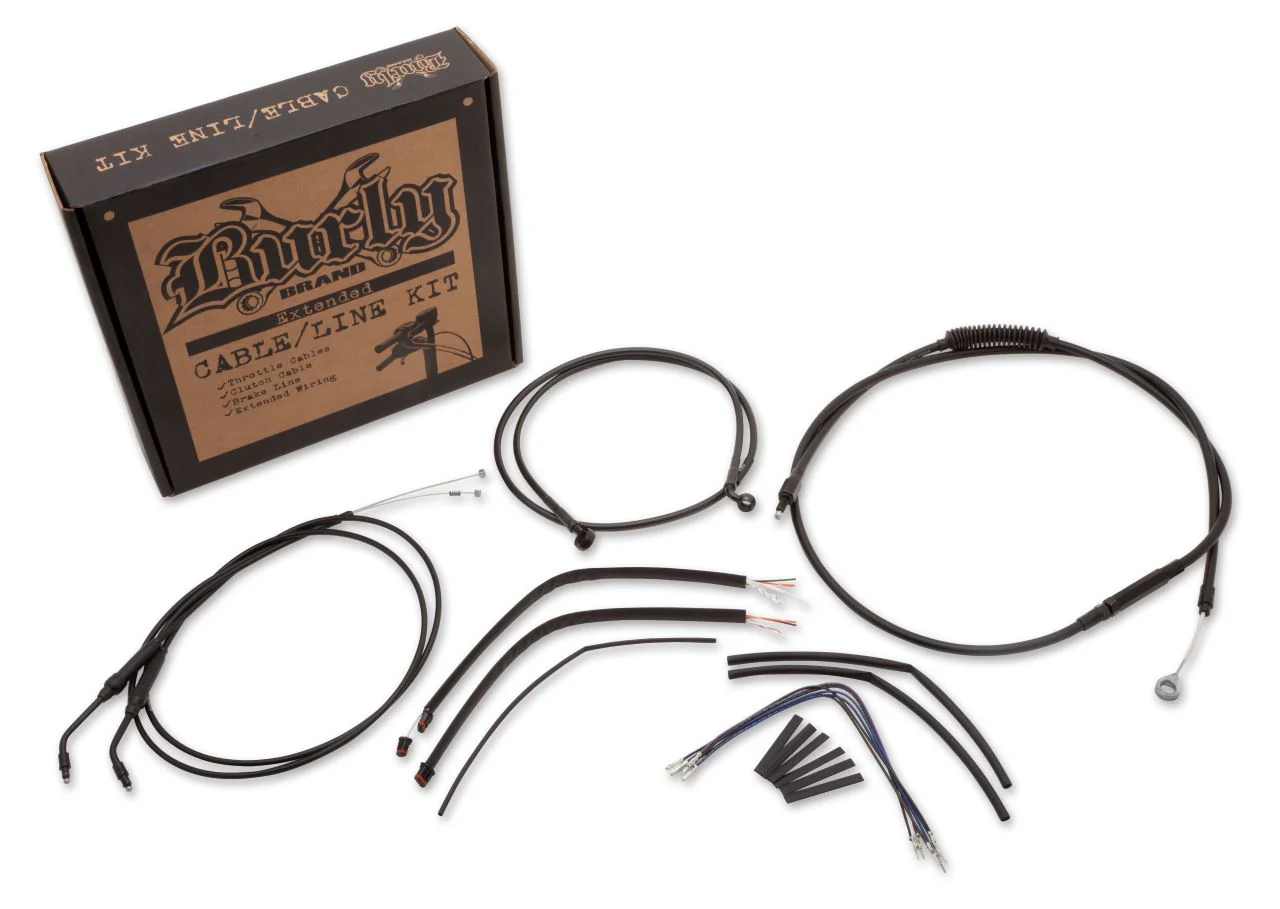

Burly Brand Extended Cable/Brake Line Kit
Part Number: B30 -1106
Finish: Black
- For 12 in. tall bars (non-ABS)
- Complete cable/line install kit for Burly 12 in. Apes
- Includes everything needed to install you handlebars: Includes all necessary wiring
- Black braided steel brake lines
- Black clutch cable
- Black throttle cables
Note: For Single Front Disc applications only
| Tire Diameter | |
| Speed Rating | |
| Load Rating | |
| Wall Construction | |
| Tire Tube Type | |
| Rim Size | |
| Product Line | Burly Brand Extended Cable/Brake Line Kit |
| Part Number | B30-1106 |
| Fitment Type | |
| Unit Sale Qty | |
| Style | for 12 inch Hanger Bars without ABS |
| Material | Stainless Steel |
| Color | Black |
| Size | |
| Finish | Black Vinyl |
| Position | |
| Functional Length | |
| Cable Sleeve Length | |
| Cable Sleeve Travel | |
| Driver Seat Length | |
| Passenger Seat Length | |
| Driver Seat Width | |
| Passenger Seat Width | |
| Piston/Cylinder Size | |
| Piston Size Added | |
| Cylinder Stroke Volume | |
| Final Engine Displacement | |
| Exhaust Configuration | |
| Muffler Size | |
| Muffler End/Tip Style | |
| Windshield Height | |
| Windshield Width | |
| Handlebar Diameter | |
| California Air Resource Board Compliance | FALSE |
| Product Disclaimer |
1- 50 in. black brake line with (1) 3/8 in./10mm 20 degree banjo and (1) 3/8 in./10mm 45 degree banjo fitting
1- Rubber coated P-clamp
4- 3/8 in./10mm copper crush washers
1- 65 in. black vinyl clutch cable with 3 1/2 in. travel
1- 35 in. black vinyl throttle cable with 5 in. 45 degree elbow and 4 3/4 in. travel
1- 35 3/4 in. black vinyl idle cable with 5 45 degree elbow and 4 5/8 in. travel
2- 15 in. cam-bus cables
1- 12 in. shrink tube
6- 13 in. wires with male and female spade connectors
2- 11 in. shrink tubes
6- 2 1/2 in. shrink tubes
1- Plastic barrel
2- Brass barrels
1- Installation Instructions
2018 Harley-Davidson Sportster Custom - XL 1200C
2017 Harley-Davidson Sportster Custom - XL 1200C
2016 Harley-Davidson Sportster Custom - XL 1200C
2015 Harley-Davidson Sportster Custom - XL 1200C
2014 Harley-Davidson Sportster Custom - XL 1200C
2018 Harley-Davidson Sportster Forty-Eight - XL 1200X
2017 Harley-Davidson Sportster Forty-Eight - XL 1200X
2016 Harley-Davidson Sportster Forty-Eight - XL 1200X
2015 Harley-Davidson Sportster Forty-Eight - XL 1200X
2014 Harley-Davidson Sportster Forty-Eight - XL 1200X
2018 Harley-Davidson Sportster Iron - XL 883N
2017 Harley-Davidson Sportster Iron - XL 883N
2016 Harley-Davidson Sportster Iron - XL 883N
2015 Harley-Davidson Sportster Iron - XL 883N
2014 Harley-Davidson Sportster Iron - XL 883N
2016 Harley-Davidson Sportster Seventy Two - XL 1200V
2015 Harley-Davidson Sportster Seventy Two - XL 1200V
2014 Harley-Davidson Sportster Seventy Two - XL 1200V
2017 Harley-Davidson Sportster Superlow - XL 1200T
2016 Harley-Davidson Sportster Superlow - XL 1200T
2015 Harley-Davidson Sportster Superlow - XL 1200T
2014 Harley-Davidson Sportster Superlow - XL 1200T
2018 Harley-Davidson Sportster SuperLow - XL 883L
2017 Harley-Davidson Sportster SuperLow - XL 883L
2016 Harley-Davidson Sportster SuperLow - XL 883L
2015 Harley-Davidson Sportster SuperLow - XL 883L
2014 Harley-Davidson Sportster SuperLow - XL 883L
